Product Summary
The 24AA00T-I/OT is a 128-bit electrically erasable PROM memory organized as 16 x 8 with a 2-wire serial interface. Low-voltage design permits operation down to 1.7 volts for the 24AA00 version, and every version maintains a maximum standby current of only 1 μA and typical active current of only 500 μA. The 24AA00T-I/OT was designed for where a small amount of EEPROM is needed for the storage of calibration values, ID numbers or manufacturing information, etc. The 24AA00T-I/OT is available in 8-pin PDIP, 8-pin SOIC (3.90 mm), 8-pin TSSOP, 8-pin 2x3 DFN and the 5-pin SOT-23 packages.
Parametrics
24AA00T-I/OT absolute maximum ratings: (1)VCC: 6.5 V; (2)All inputs and outputs w.r.t. VSS: -0.6 V to VCC +1.0 V; (3)Storage temperature: -65 °C to +150 °C; (4)Ambient temperature with power applied: -40 °C to +125 °C; (5)ESD protection on all pins: 4 kV.
Features
24AA00T-I/OT features: (1)Single supply with operation down to 1.7V for 24AA00 devices, 2.5V for 24LC00 devices; (2)Low-power CMOS technology: Read current 500 μA, typical; Standby current 100 nA, typical; (3)2-wire serial interface, I2C compatible; (4)Schmitt Trigger inputs for noise suppression; (5)Output slope control to eliminate ground bounce; (6)100 kHz and 400 kHz clock compatibility; (7)Page write time 3 ms, typical; (8)Self-timed erase/write cycle; (9)ESD protection >4000V; (10)More than 1 million erase/write cycles; (11)Data retention >200 years; (12)Factory programming available; (13)Packages include 8-lead PDIP, SOIC, TSSOP, DFN and 5-lead SOT-23; (14)Pb-free and RoHS compliant; (15)Temperature ranges available: Industrial (I): -40°C to +85°C; Automotive (E): -40°C to +125°C.

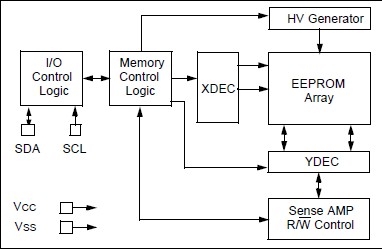

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 24AA00T-I/OT |
Microchip Technology |
EEPROM 16byte 128kb 1.8V |
Data Sheet |
|
|
||||||||||||
|
24AA00T-I/OTG |
Microchip Technology |
EEPROM 16byte 128kb 1.8V Lead Free Package |
Data Sheet |
Negotiable |
|
||||||||||||
