Product Summary
The BCM2045BKFBG is a monolithic, single-chip, stand-alone baseband processor with an integrated 2.4-GHz transceiver for Bluetooth 2.0 + EDR applications. It is fully compliant with the Bluetooth specification and completely backward-compatible with any Bluetooth version 1.1 or 1.2-based system. The applications of the BCM2045BKFBG include Cellular and mobile communication devices, PDA and low-power embedded communication devices, PC and integration on PC mother board applications, Package types available, 95-pin fpBGA package (6 mm x 6 mm); 65-pin fpBGA package (5 mm x 5 mm); Wafer scale flip chip packaging.
Features
BCM2045BKFBG features: (1)World’s first Bluetooth 2.0 + EDR solution in 0.13 um CMOS; (2)technology; (3)Fully integrated balun and T/R switch eliminates all external RF matching components; (4)Supports class 1, 2, and 3 designs; (5)Fully supports the Bluetooth 1.1, 1.2, and 2.0 standards including 1, 2, and 3 Mbps EDR operation; (6)Lowest current consumption in all modes of operation; (7)ROM-based solution eliminates external flash and/or EEPROM memory; (8)Highest available Bluetooth radio performance of any singlechip solution; (9)88 dBm receiver sensitivity using EDR communication; (10)Programmable output power up to +7 dBm; (11)Minimized external BOM requirements are less than 10 external passive components; (12)Supports UART, USB, SDI, and SPI HCI transports; (13)Fractional-N frequency synthesizer supports any crystal or TCXO source from 12 to 40 MHz; (14)Automatic calibration and frequency detection of crystal frequency.

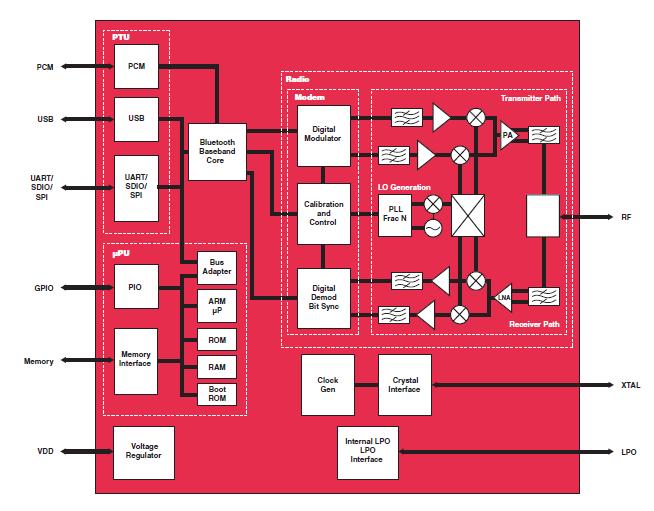

Diagrams
