Product Summary
The FTLX8571D3BCL-HW is a 10Gb/s SFP+ transceiver designed for use in 10-Gigabit Ethernet links over multimode fiber. The device is compliant with SFF-84311, SFF-84322 and IEEE 802.3ae 10GBASE-SR/SW3. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84724. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC5, and Finisar Application Note AN-20386. The application of the FTLX8571D3BCL-HW includes 10GBASE-SR/SW 10G Ethernet.
Parametrics
FTLX8571D3BCL-HW absolute maximum ratings: (1)Maximum Supply Voltage, Vcc: -0.5 to 4.0 V; (2)Storage Temperature, TS: -40 to 85℃; (3)Case Operating Temperature, TA: 0 to 70℃; (4)Relative Humidity, RH: 0 to 85 %.
Features
FTLX8571D3BCL-HW features: (1)Hot-pluggable SFP+ footprint; (2)Supports 9.95 to 10.3 Gb/s bit rates; (3)Power dissipation < 1W; (4)RoHS-6 compliant (lead-free); (5)Commercial temperature range 0℃ to 70℃; (6)Single 3.3Vpower supply; (7)Maximum link length of 300m on 2000 MHZ-km MMF; (8)Uncooled 850nm VCSEL laser; (9)Receiver limiting electrical interface; (10)Duplex LC connector; (11)Built-in digital diagnostic functions.

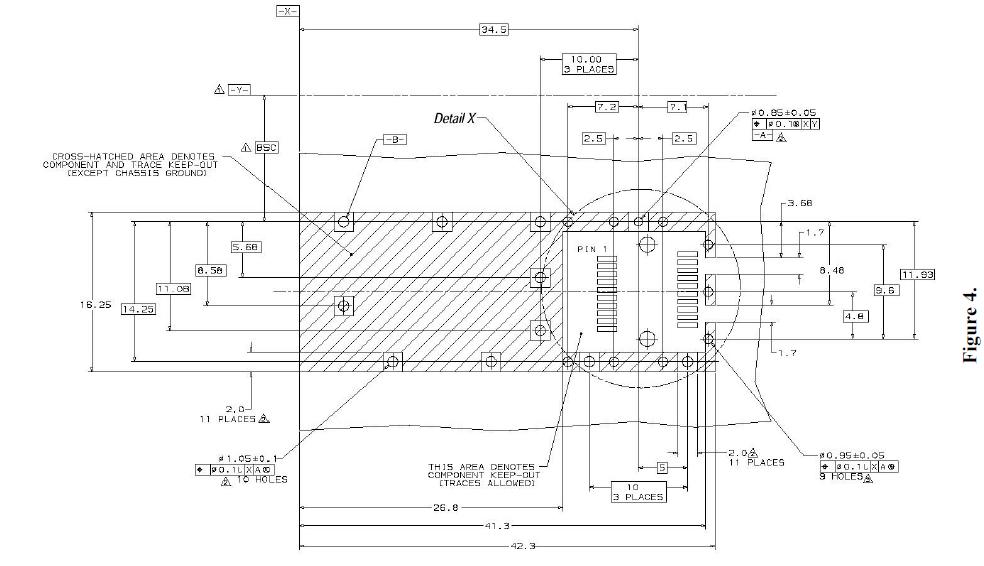

Diagrams
