Product Summary
The K9F1208R0B-JIB0 is a 512M bit Flash Memory. The K9F1208R0B-JIB0 is offered in 1.8V, 2.7V, 3.3V Vcc. Its NAND cell provides the most cost-effective solutIon for the solid state mass storage market. A program operation can be performed in typical 200μs on the 528-byte page and an erase operation can be performed in typical 2ms on a 16K-byte block. Data in the page can be read out at 50ns(K9F1208R0B : 60ns) cycle time per byte. The I/O pins serve as the ports for address and data input/output as well as command input. The K9F1208R0B-JIB0 is an optimum solution for large nonvolatile storage applications such as solid state file storage and other portable applications requiring non-volatility.
Parametrics
K9F1208R0B-JIB0 absolute maximum ratings: (1)Voltage on any pin relative to VSS: -0.6 to + 4.6 V; (2)Temperature Under Bias: -10 to +125°C; (3)Storage Temperature: -65 to +150 °C; (4)Short Circuit Current: 5 mA.
Features
K9F1208R0B-JIB0 features: (1)Command Register Operation; (2)Intelligent Copy-Back; (3)Unique ID for Copyright Protection; (4)Endurance : 100K Program/Erase Cycles; (5)Data Retention : 10 Years; (6)Command/Address/Data Multiplexed I/O Port; (7)Hardware Data Protection - Program/Erase Lockout During Power Transitions; (8)Reliable CMOS Floating-Gate Technology; (9)Program time : 200us(Typ.); (10)Block Erase Time : 2ms(Typ.); (11)Page Size : (512 + 16)Byte; (12)Random Access : 15us(Max.).

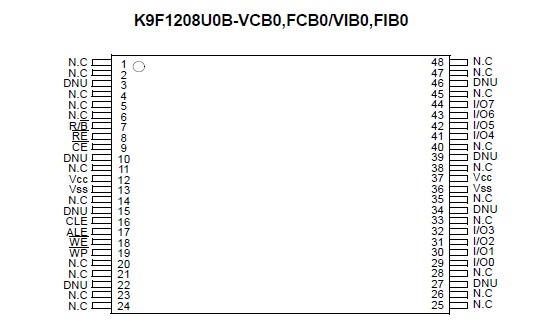

Diagrams
