Product Summary

Offered in 512Mx8bit, the K9F4G08U0B-PCBO is a 4G-bit NAND Flash Memory with spare 128M-bit. NAND cell of the K9F4G08U0B-PCBO provides the most cost-ffective solution for the solid state application market. The K9F4G08U0B-PCBO is an optimum solution for large nonvolatile storage applications such as solid state file storage and other portable applications requiring non-volatility.

Parametrics

K9F4G08U0B-PCBO absolute maximum ratings: (1) Voltage on any pin relative to VSS, Vcc: -0.6 to 4.6V, VIN: -0.6 to 4.6V, VI/O: -0.6 to Vcc +0.3(＜4.6V); (2) Storage Temperature Tstg: -65°C to +150°C; (3) Short Circuit Current IOS: 5mA.

Features

K9F4G08U0B-PCBO features: (1) Voltage Supply: 2.7V to 3.6V; (2) Memory Cell Array : (512M + 16M) x 8bit; (3) Automatic Program and Erase; (4) Page Read Operation; (5) Fast Write Cycle Time; (6) Command/Address/Data Multiplexed I/O Port; (7) Reliable CMOS Floating-Gate Technology; (8) Intelligent Copy-Back with internal 1bit/528Byte EDC; (9) Command Driven Operation; (10) Unique ID for Copyright Protection.

Diagrams

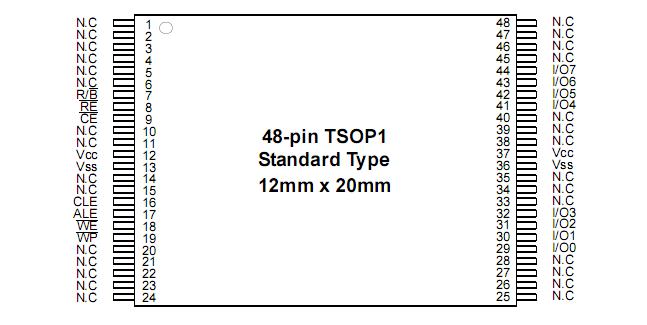

K9F4G08U0B-PCBO Pin Configuration
