Product Summary

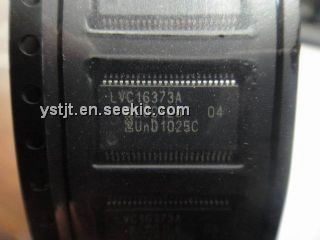

The LVC16373A 16-bit transparent D-type latch is designed for 1.65-V to 3.6-V VCC operation. The SN74LVC16373A is particularly suitable for mplementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The LVC16373A can be used as two 8-bit latches or one 16-bit latch.
Parametrics
LVC16373A absolute maximum ratings: (1) Supply voltage range VCC: -0.5V to 6.5V; (2) Input voltage range VI: -0.5V to 6.5V; (3) Voltage range applied to any output in the high-impedance or power-off state Vo: -0.5V to 6.5V; (4) Voltage range applied to any output in the high or low state Vo: -0.5V Vcc +0.5V; (5) Input clamp current VI< 0: -50mA; (6) Output clamp current Vo< 0, IOK: -50mA; (7) Continuous output current Io: ±50mA; (8) Storage temperature range Tstg: -65°C to +150°C.
Features
LVC16373A features: (1) Member of the Texas Instruments Widebus Family; (2) Operates From 1.65V to 3.6V; (3) Inputs Accept Voltages to 5.5V; (4) Supports Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-VCC) ; (5) Latch-Up Performance Exceeds 100mA per JESD 78, Class II; (6) ESD Protection Exceeds JESD 22.
Diagrams
