Product Summary
The MAXQ610A-UEI is a low-power, 16-bit MAXQ microcontroller designed for low-power applications including universal remote controls, consumer electronics, and white goods. The MAXQ610A-UEI combines a powerful 16-bit RISC microcontroller and integrated peripherals including two USARTs and an SPI master/slave communications port, along with an IR module with carrier frequency generation and flexible port I/O capable of multiplexed keypad control.
Parametrics
MAXQ610A-UEI absolute maximum ratings: (1)Voltage Range on VDD with Respect to GND: -0.3V to +3.6V; (2)Voltage Range on Any Lead with Respect to GND except VDD: -0.3V to (VDD + 0.5V); (3)Continuous Power Dissipation (Multilayer Board, TA = +70℃), 32 TQFN (derate 34.5mW/℃ above +70℃): 2758.6mW; 40 TQFN (derate; 35.7mW/℃ above +70℃): 2963mW; 44 TQFN (derate 37mW/℃ above +70℃): 2758.6mW; (4)Operating Temperature Range: 0℃ to +70℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature (soldering, 10s): +300℃; (7)Soldering Temperature (reflow): +260℃.
Features
MAXQ610A-UEI features: (1)High-Performance, Low-Power 16-Bit RISC Core; (2)DC to 12MHz Operation Across Entire Operating Range; (3)1.70V to 3.6V Operating Voltage Range; (4)33 Total Instructions for Simplified Programming; (5)Three Independent Data Pointers Accelerate Data Movement with Automatic Increment/Decrement; (6)Dedicated Pointer for Direct Read from Code Space 16-Bit Instruction Word, 16-Bit Data Bus; (7)16 x 16-Bit General-Purpose Working Registers; (8)Secure MMU for Application Partitioning and IP Protection.

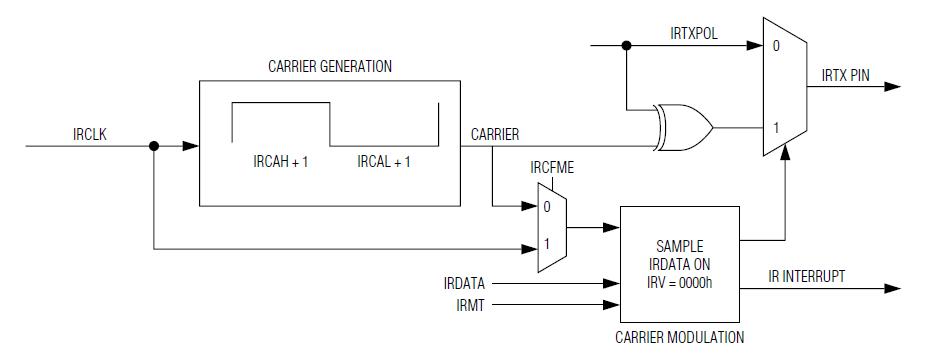

Diagrams
