Product Summary

The SC4510I is a High Performance Synchronous Buck Controller which can be configured as a synchronous buck convertor capable of sourcing and sinking current from load without losing output regulation. The output can be set to track an internal reference or an external voltage. The actual reference used by the error amplifier is buffered and brought out as a reference. It is the ideal choice for externally referenced or tracking buck convertors such as those for DDR memory applications. The applications of the SC4510I include Externally referenced buck convertors, DDR memory terminators, Point of use power supplies.

Parametrics

SC4510I absolute maximum ratings: (1)BST, GDH to PGND: -0.3 to 32 (steady state)V; -0.3 to 40V(for < 10ns @ freq. < 500kHz); (2)PVCC, AVCC, VIN, VPN, GDL to PGND: -0.3 to 16 V; (3)PGND to AGND: ±0.3 V; (4)CS+ to AGND: -0.3 to AVCC V; (5)COMP, IN-, REFIN, REFOUT, ROSC, SS/EN to AGND: -0.3 to 6 V; (6)REFIN and REFOUT to AGND: 0 to 3.0 V; (7)GDH Source or Sink Current: + 0.75 A; (8)GDL Source or Sink Current: + 1 A; (9)Storage Temperature Range: -60 to +150℃; (10)Junction Temperature: -40 to +125℃; (11)Lead Temperature (Soldering) 10 Sec.: 260℃; (12)ESD Rating (Human Body Model): 2 kV.

Features

SC4510I features: (1)Synchronous buck operation with current sink or source without loss of regulation; (2)Output can track internal or external reference; (3)Buffered reference output from external reference; (4)Combi-Sense mode lossless current sensing; (5)2.5V to 16V operation with 4.75V minimum VCC; (6)Direct drive for high side N-channel MOSFETs with diode and capacitor bootstrap; (7)Undervoltage lockout, Soft Start, Enable and Power Good functions; (8)Fast transient response with external compensation; (9)Current mode control with transconductance error amplifier; (10)Programmable oscillator frequency with external sync.

Diagrams

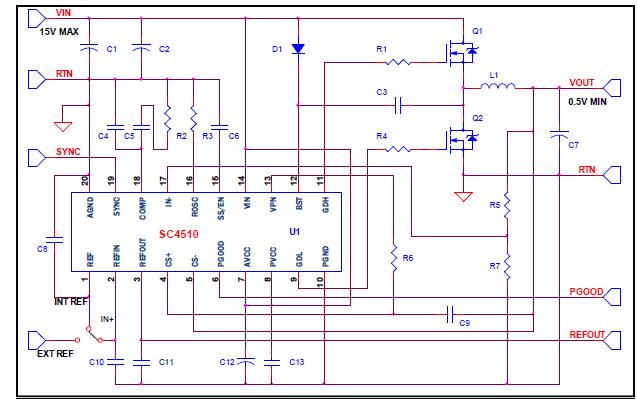

SC4510I block diagram
