SG6841DZ

Product Summary

The SG6841DZ is a High-integrated Green-mode PWM Controller. It provides several features to enhance the performance of low power flyback converters. To minimize standby power consumption, the proprietary green-mode function provides off-time modulation to linearly decrease the switching frequency under light-load conditions. The SG6841DZ also provides many protection functions. Pulse by pulse current limit ensures a constant output current under short circuit. If a short circuit failure or over load happens, the SG6841DZ will shut off after a continuous high voltage detection on FB pin. The applications of it are General-purpose switching mode power supplies and flyback power converters, Power Adapter, Open-frame SMPS, Battery Charger Adapter.

Parametrics

SG6841DZ absolute maximum ratings: (1)DC Supply Voltage: 30V; (2)Zener clamp: 32V; (3)Zener current: 10mA; (4)Gate Output Current: 500mA; (5)Input Voltage to FB Pin: -0.3V to 7V; (6)Input Voltage to SENSE Pin: -0.3V to 7V; (7)Input Voltage to RT Pin: -0.3V to 7V; (8)Input Voltage to Ri Pin: -0.3V to 7V; (9)Power Dissipation: 1W; (10)Thermal Resistance Junction-air: DIP: 82.5℃/W, SOP: 141℃/W; (11)Operating Junction Temperature: 150℃; (12)Operating Ambient Temperature: -30℃ to 85℃; (13)Storage Temperature Range: -55℃ to +150℃; (14)ESD Capability, HBM model: 3.0kV; (15)ESD Capability, Machine model: 250V.

Features

SG6841DZ features: (1)Green-mode PWM to support “Blue Angel” Norm; (2)Low start up current 30uA; (3)Low operation current 3mA; (4)Leading-edge blanking; (5)Built-in synchronized slope compensation Constant output power limit for universal AC input; (6)Current mode operation; (7)Cycle-by-cycle current limiting; (8)Under voltage lockout (UVLO); (9)Programmable PWM frequency; (10)GATE output maximum voltage clamped at 18V; (11)Totem pole output includes soft driving for better EMI; (12)Build-in limited-power-control to meet safety requirement; (13)Programmable over-temperature protection; (14)Few external components & low cost solution.

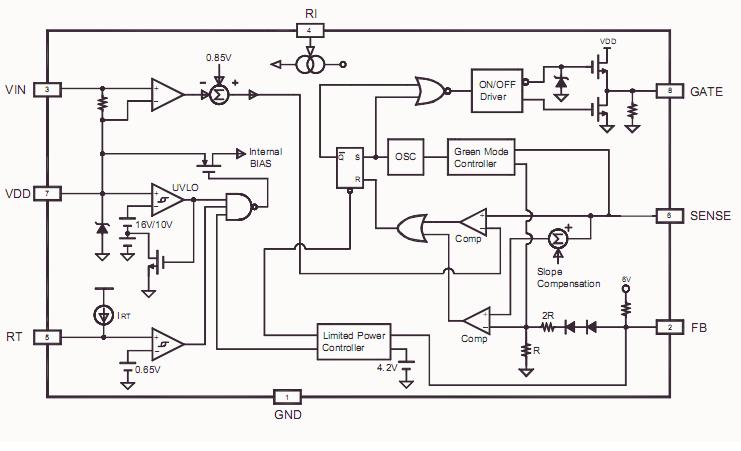

Diagrams
