SN74CBTLV16212GR

SN74CBTLV16212GR, low-voltage 24-bit FET bus-exchange switch, TSSOP, -0.5 V to 4.6 V, 128mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	2.80 / Piece
301 ~ 600 :	2.50 / Piece
601 ~ 1000 :	2.00 / Piece

PartNumber:: SN74CBTLV16212GR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-11

From Other Seller

Part Number:SN74CBTLV16212GR
US $2.00 - 2.80
Quantity:

piece

Product Summary

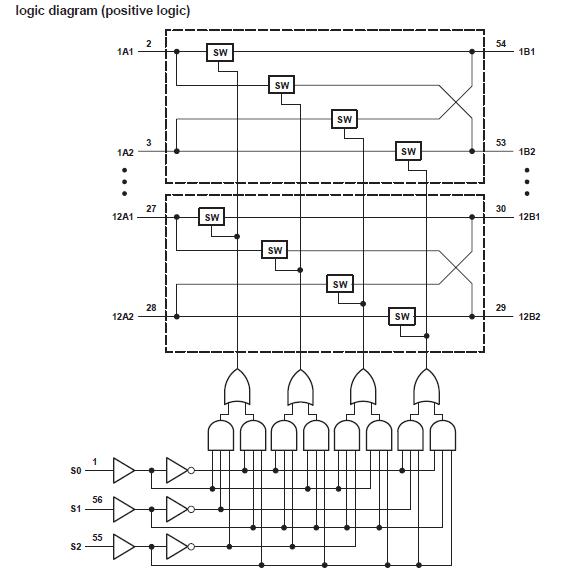

The SN74CBTLV16212GR is a low-voltage 24-bit FET bus-exchange switch. It provides 24 bits of high-speed bus switching or exchanging. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The SN74CBTLV16212GR operates as a 24-bit bus switch or a 12-bit bus exchanger, which provides data exchanging between the four signal ports via the data-select (S0, S1, S2) terminals. The SN74CBTLV16212GR is fully specified for partial-power-down applications using Ioff. The Ioff feature of SN74CBTLV16212GR ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.

Parametrics

SN74CBTLV16212GR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 4.6 V; (2)Input voltage range, VI: -0.5 V to 4.6 V; (3)Continuous channel current: 128 mA; (4)Input clamp current, IIK (VI < 0): -50 mA; (5)Package thermal impedance, θJA: DGG package: 64℃/W, DGV package: 48℃/W, DL package: 56℃/W; (6)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74CBTLV16212GR features: (1)Member of the Texas Instruments Widebus Family; (2)4-Ω Switch Connection Between Two Ports; (3)Rail-to-Rail Switching on Data I/O Ports; (4)Ioff Supports Partial-Power-Down Mode Operation; (5)Break-Before-Make Feature; (6)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (7)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A).
