Product Summary
The W25X80AVSNIG is an 8M-bit Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25X series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code download applications as well as storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 5mA active and 1μA for power-down. The W25X80AVSNIG is offered in space-saving packages.
Parametrics
W25X80AVSNIG absolute maximum ratings: (1)Supply Voltage, VCC: -0.6 to +4.0 V; (2)Voltage Applied to Any Pin VIO Relative to Ground: -0.6 to VCC+0.4 V; (3)Transient Voltage on any Pin VIOT <20nS Transient Relative to Ground: -2.0V to VCC+2.0V V; (4)Storage Temperature, TSTG: -65 to +150℃; (5)Lead Temperature TLEAD: See Note (2)℃; (6)Electrostatic Discharge Voltage VESD Human Body Model: -2000 to +2000 V.
Features
W25X80AVSNIG features: (1)Family of Serial Flash Memories, W25X80A: 8M-bit / 1M-byte (1,048,576); 256-bytes per programmable page; Uniform 4K-byte Sectors / 64K-byte Blocks; (2)SPI with Single or Dual Outputs, Clock, Chip Select, Data I/O, Data Out; Optional Hold function for SPI flexibility; (3)Data Transfer up to 200M-bits / second, Clock operation to 100MHz; Fast Read Dual Output instruction; Auto-increment Read capability.

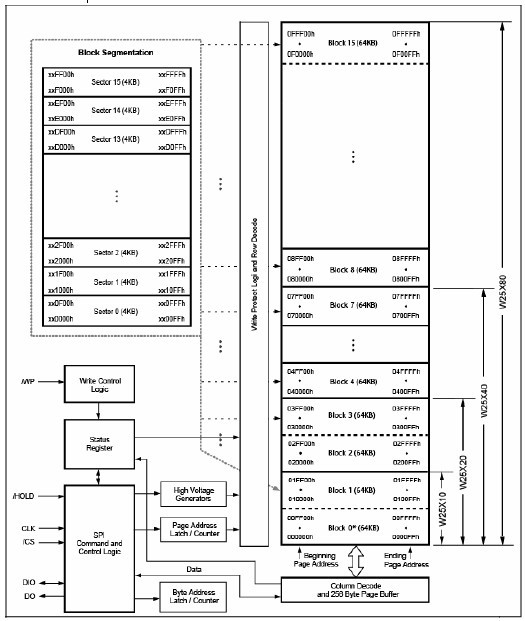

Diagrams
