Product Summary

The 74AHC2G08VS is a high-speed Si-gate CMOS device. The 74AHC2G08VS provides two 2-input AND gates.

Parametrics

74AHC2G08VS absolute maximum ratings: (1) supply voltage Vcc: -0.5V, +7.0V; (2) Input voltage VI: 0.5V, +7.0V; (3) input diode currentV < -0.5V, IIK； -20mA; (4) output diode current, Vo < -0.5V　or Vo >Vcc +0.5V, IOK: ±20mA; (5) Vcc or GND current, ICC, IGND: ±75mA; (6) storage temperature Tstg: -65°C to +150°C; (7) power dissipation Tamb = -40°C to+125 °C.

Features

74AHC2G08VS features: (1) Symmetrical output impedance; (2) High noise immunity; (3) Low power dissipation Balanced propagation delays; (4) Multiple package options; (5) Specified from -40°C to +80°C and from -40°C to+125°C.

Diagrams

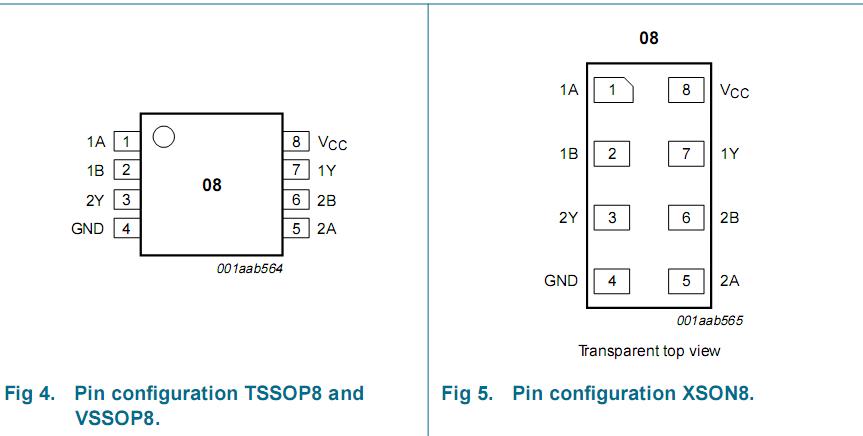

74AHC2G08VS Pin Configuration
