Product Summary
The PW621-M is a 1.5 Watts Unregulated DC/DC Converter. The PW621-M offers a broad line of low-cost, high-isolation voltage, unregulated, single and dual output DC/DC converters in a 24-pin DIP package. These small converters offer a 4000V isolation rating in a 1.25" × 0.8" package area.
Parametrics
PW621-M absolute maximum ratings: (1)Rated Voltage: 4,000 VDC; (2)Test Voltage: 60 Hz, 60 Seconds 8,000 Vpk; (3)Resistance: 10 GΩ; (4)Capacitance: 10 pF.
Features
PW621-M features: (1)rohs compliant; (2)high isolation - 4000v rating; (3)8000v isolation test voltage; (4)barrier 100% production tested; (5)low barrier capacitance - 10pf; (6)low leakage current - 2μa max; (7)24-pin dip package; (8)nternal filtering.

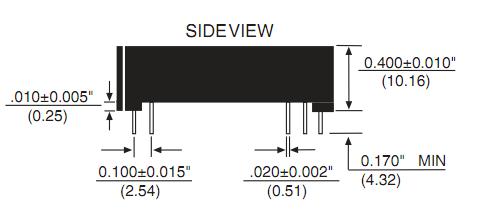

Diagrams
