Product Summary

The C0603NP0120JFT is a fully integrated mixed-signal System-on-a-Chip MCU.

Parametrics

C0603NP0120JFT absolute maximum ratings: (1)Ambient temperature under bias: –55 to 125 ℃; (2)Storage Temperature: –65 to 150 ℃; (3)Voltage on any Port I/O Pin or /RST with respect to GND: –0.3 to 5.8 V; (4)Voltage on VDD with respect to GND: –0.3 to 4.2 V; (5)Maximum Total current through VDD and GND: 500 mA; (6)Maximum output current sunk by /RST or any Port pin: 100 mA.

Features

C0603NP0120JFT features: (1)High-speed pipelined 8051-compatible microcontroller core (up to 48 MIPS); (2)In-system, full-speed, non-intrusive debug interface (on-chip); (3)Universal Serial Bus (USB) Function Controller with eight flexible endpoint pipes, integrated transceiver, and 1 kB FIFO RAM; (4)Supply Voltage Regulator; (5)True 10-bit 200 ksps differential / single-ended ADC with analog multiplexer; (6)On-chip Voltage Reference and Temperature Sensor; (7)On-chip Voltage Comparators; (8)Precision internal calibrated 12 MHz internal oscillator and 4x clock multiplier; (9)Internal low-frequency oscillator for additional power savings.

Diagrams

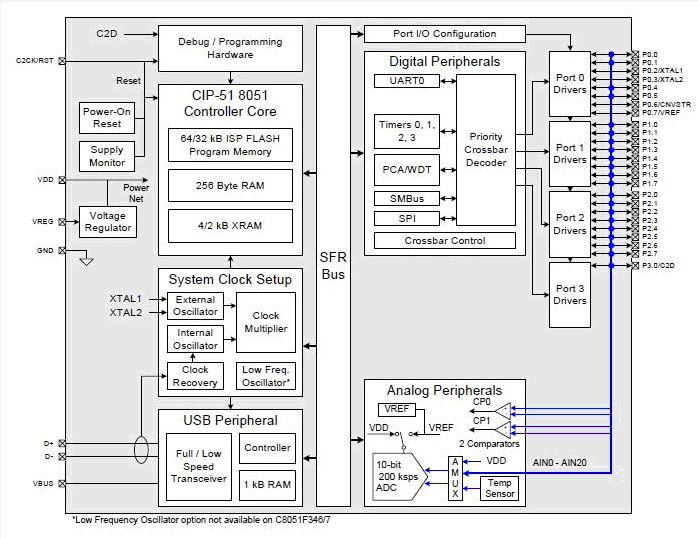

C0603NP0120JFT block diagram
