Product Summary

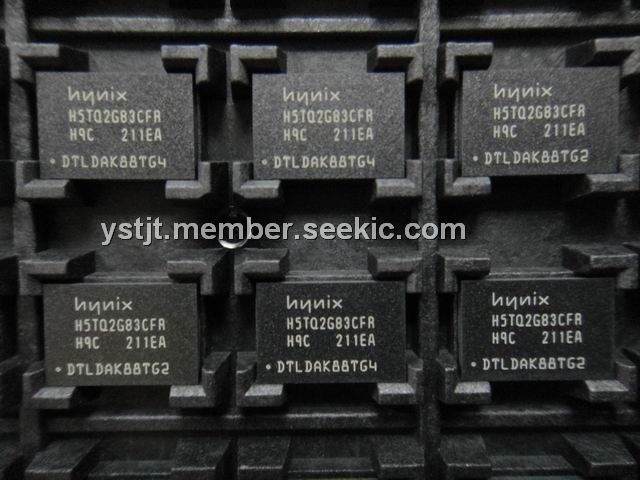

The H5TQ2G83CFR-H9C is a 1 Gb DDR2 SDRAM.
Parametrics
H5TQ2G83CFR-H9C absolute maximum ratings: (1)VDD Voltage on VDD pin relative to VSS: -1.0V to 2.3V; (2)VDDQ Voltage on VDDQ pin relative to Vss: - 0.5V to 2.3V; (3)VDDL Voltage on VDDL pin relative to Vss: - 0.5 V ~ 2.3 V; (4)VIN, VOUT Voltage on any pin relative to Vss: - 0.5V to 2.3V; (5)TSTG Storage Temperature: -55℃ to +100℃; (6)II Input leakage current; any input 0V VIN VDD; all other balls not under test = 0V): -2μA to 2μA; (7)IOZ Output leakage current; 0V VOUT VDDQ; DQ and ODT disabled: -5μA to 5μA.
Features
H5TQ2G83CFR-H9C features: (1)VDD = 1.8 +/- 0.1V; (2)VDDQ = 1.8 +/- 0.1V; (3)All inputs and outputs are compatible with SSTL_18 interface; (4)8 banks; (5)Fully differential clock inputs (CK, /CK) operation; (6)Double data rate interface; (7)Source synchronous-data transaction aligned to bidirectional data strobe (DQS, DQS); (8)Differential Data Strobe (DQS, DQS); (9)Data outputs on DQS, DQS edges when read (edged DQ); (10)Data inputs on DQS centers when write (centered DQ); (11)On chip DLL align DQ, DQS and DQS transition with CK transition; (12)DM mask write data-in at the both rising and falling edges of the data strobe; (13)All addresses and control inputs except data, data strobes and data masks latched on the rising edges of the clock; (14)Programmable CAS latency 3, 4, 5 and 6 supported; (15)Programmable additive latency 0, 1, 2, 3, 4 and 5 supported.
Diagrams
