Product Summary

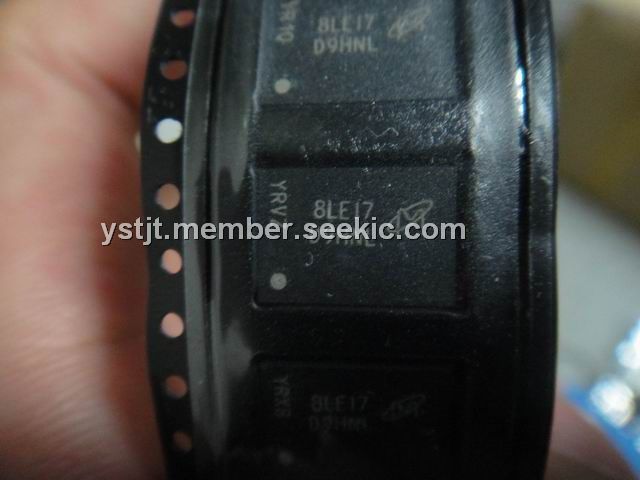

The 8LE17D9HNL is a half bridge driver.
Parametrics
8LE17D9HNL absolute maximum ratings: (1)High side floating supply voltage: -0.3V 625V; (2)High side floating supply offset voltage: VB - 25 VB + 0.3; (3)High side floating output voltage: VS - 0.3 VB + 0.3; (4)Supply current (note 1): 25mA; (5)RT pin current: -5mA.
Features
8LE17D9HNL features: (1)Integrated 600V half-bridge gate driver; (2)15.6V zener clamp on Vcc; (3)True micropower start up; (4)Tighter initial deadtime control; (5)Low temperature coefficient deadtime; (6)Shutdown feature (1/6th Vcc) on CT pin; (7)Increased undervoltage lockout Hysteresis (1V); (8)Lower power level-shifting circuit; (9)Constant LO, HO pulse widths at startup.

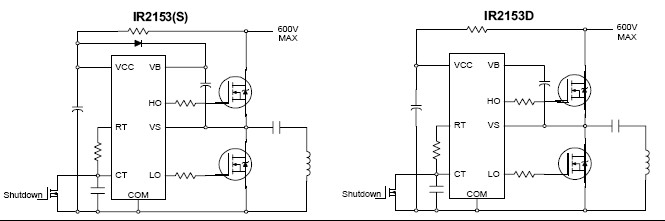

Diagrams
