Product Summary
The CY14B104L-ZS45XC is a fast static RAM, with a nonvolatile element in each memory cell. The CY14B104L-ZS45XC is organized as 512K words of 8 bits each or 256K words of 16 bits each. The mbedded nonvolatile elements incorporate QuantumTrap technology producing the world’s most reliable nonvolatile memory. The CY14B104L-ZS45XC provides infinite read and write cycles, while independent, nonvolatile data resides in the highly reliable QuantumTrap cell.
Parametrics
CY14B104L-ZS45XC absolute maximum ratings: (1)Storage Temperature:–65°C to +150°C; (2)Ambient Temperature with Power Applied:–55°C to +150°C; (3)Supply Voltage on VCC Relative to GND:–0.5V to 4.1V; (4)Voltage Applied to Outputs in High-Z State: –0.5V to VCC + 0.5V; (5)Input Voltage:–0.5V to Vcc+0.5V; (6)Transient Voltage (<20 ns) on Any Pin to Ground Potential:–2.0V to VCC + 2.0V; (7)Package Power Dissipation Capability (TA = 25°C):10W; (8)Surface Mount Pb Soldering Temperature (3 Seconds): +260°C; (9)Output Short Circuit Current:15 mA; (10)Static Discharge Voltage: > 2001V(per MIL-STD-883, Method 3015); (11)Latch-up Current: > 200 mA.
Features
CY14B104L-ZS45XC features: (1)15 ns, 25 ns, and 45 ns access times; (2)Internally organized as 512K x 8 or 256K x 16; (3)Hands-off automatic STORE on power down with only a small capacitor; (4)STORE to QuantumTrap nonvolatile elements is initiated by software, device pin or Autostore on power down; (5)RECALL to SRAM initiated by software or power up; (6)Infinite read, write, and recall cycles; (7)8 mA typical ICC at 200 ns cycle time; (8)200,000 STORE cycles to QuantumTrap; (9)20 year data retention ; (10)Single 3V +20%, –10% operation; (11)Commercial and industrial temperatures; (12)FBGA and TSOP - II packages; (13)RoHS compliance.

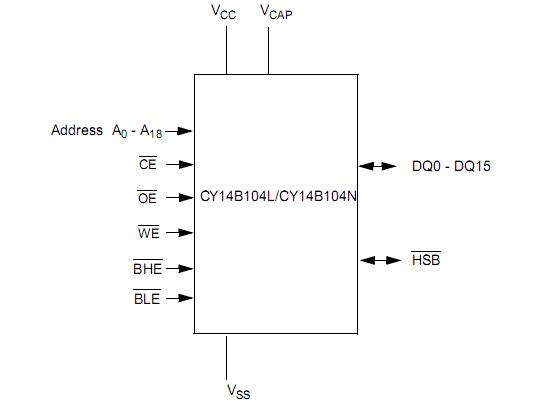

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY14B104L-ZS45XC |
Cypress Semiconductor |
NVRAM 4 Mbit (512K x 8) 45ns nvSRAM |
Data Sheet |
Negotiable |
|
||||
 |
CY14B104L-ZS45XCES |
Cypress Semiconductor |
NVRAM nvSRAM 512Kx8 3V |
Data Sheet |
Negotiable |
|
||||
|
CY14B104L-ZS45XCT |
Cypress Semiconductor |
NVRAM 4 Mbit (512K x 8) 45ns nvSRAM |
Data Sheet |
Negotiable |
|
||||
