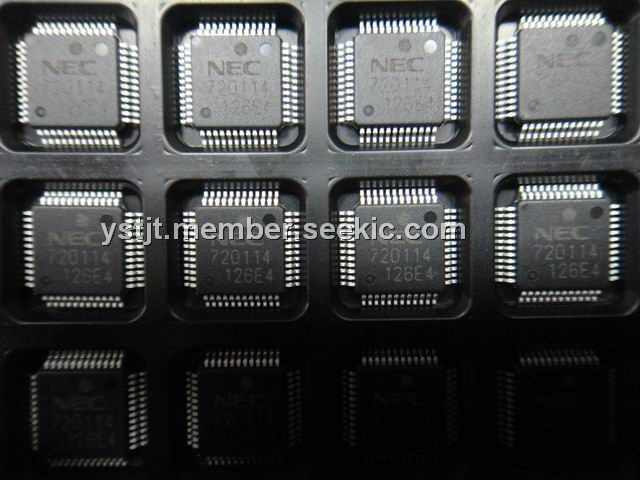

Product Summary

The 720114 is a USB 2.0 hub device that complies with the Universal Serial Bus (USB) Specification Revision 2.0 and works up to 480 Mbps. USB 2.0 compliant transceiver is integrated for upstreamand all downstream ports. The 720114 works backward compatible either when any one of the downstream ports isconnected to a USB 1.1 compliant device, or when the upstream port is connected to a USB 1.1 compliant host.

Parametrics

720114 absolute maximum ratings: (1)Power supply voltage, VDD33,VDD33REG: -0.5 to +4.6V; (2)Input/output voltage, 3.3 V input/output voltage, 3.0 V ≤ VDD33 ≤ 3.6 V, VI/VO: -0.5 to +4.6V; VI/VO < VDD33 +1.0 V, VI/VO: -0.5 to +4.6V; 5 V input/out voltage, VI/VO: -0.5 to +6.6V; 3.0 V ≤VDD33 ≤3.6 V, VI/VO: -0.5 to +6.6V; (3)Output current, IOL = 3 mA, IO: 10mA; IOL = 12 mA, IO: 40mA ; (4)Operating temperature, TA: 0 to +70℃ ; (5)Storage temperature, Tstg: -65 to +150℃.

Features

720114 features: (1)Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps); (2)High-speed or full-speed packet protocol sequencer for Endpoint 0/1; (3)4 (Max.) downstream facing ports; (4)Low power consumption (10 μA when hub in idle status, 149 mA when all parts run in HS mode); (5)All downstream facing ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction; (6)Supports split transaction to handle full-speed and low-speed transaction on downstream facing ports when Hub controller is working in high-speed mode; (7)One Transaction Translator per Hub and supports four non-periodic buffers ; (8)Supports self-powered and bus-powered mode; (9)Supports individual or global over-currentdetection and individual or ganged power control; (10)Supports downstream port status with LED; (11)Supports non-removable devices by I/O pin configuration; (12)Support Energy Star for PC peripheral system; (13)On chip Rpu, Rpd resistors and regulator (for core logic); (14)Use 30 MHz crystal; (15)3.3 V power supply.

Diagrams

720114 block diagram

7201
7201

Keystone Electronics

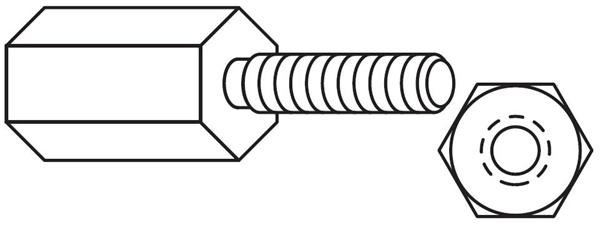

Circuit Board Hardware - PCB NB .875 M/F THRD

Data Sheet

0-1: $0.49
1-100: $0.31
100-500: $0.28
500-1000: $0.22
7201-003
7201-003

Tusonix

Feed Thru Capacitors 4000/9000pF 1000Vdc

Data Sheet

0-40: $14.40
40-50: $13.32
50-100: $9.31
7201-05-1000
7201-05-1000


RELAY REED SPST 1A 5V

Data Sheet

0-200: $14.43
7201-05-1010
7201-05-1010


RELAY REED SPST 1A 5V

Data Sheet

0-200: $15.46
7201-05-1011
7201-05-1011


RELAY REED SPST 1A 5V

Data Sheet

0-200: $16.39
7201-05-1100
7201-05-1100

Coto Technology

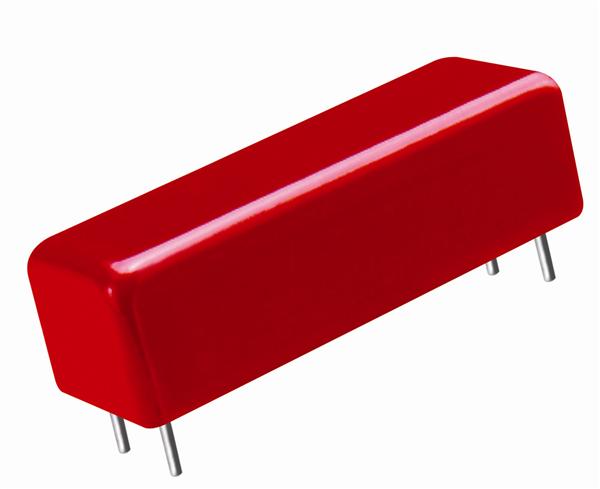

Reed Relay REED RELAY DIP SPDT 5V W/DIODE
