Product Summary
The 74AHCT1G126GW is a high-speed Si-gate CMOS device. The 74AHCT1G126GW provides one non-inverting buffer/line driver with 3-state output. The 3-state output of the 74AHCT1G126GW is controlled by the output enable input pin (OE). A LOW at pin OE causes the output of the 74AHCT1G126GW to assume a high-impedance OFF-state.
Parametrics
74AHCT1G126GW absolute maximum ratings: (1) supply voltage VCC: -0.5V to +7.0V; (2) input voltage VI: -0.5V to +7.0V; (3) input diode current IIK: VI＜-0.5V; (4) output diode current IOK: ±20mA ( Vox＜-0.5V or Vo＞Vcc +0.5V) ; (5) output source or sink current Io: ±25mA ( -0.5V＜Vo＜Vcc +0.5V ) ; (6) Vcc or GND current Icc: ±75mA; (7) storage temperature Tstg: -65°C to +150°C; (8) power dissipation per package PD: 250mW (for temperature range from -40 °Cto+125°C) .
Features
74AHCT1G126GW features: (1) Symmetrical output impedance; (2) Low power dissipation; (3) ? Balanced propagation delays; (4) Very small 5-pin package; (5)Output capability: standard; (6) Specified from -40°C to+125 °C.

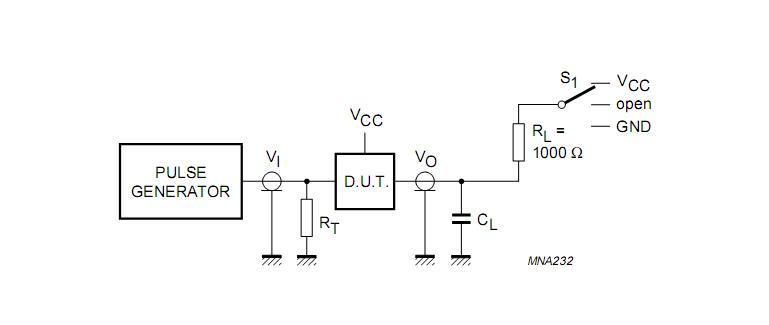

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74AHCT1G126GW,125 |
NXP Semiconductors |
Buffers & Line Drivers 3-STATE BUFFER |
Data Sheet |
|
|
||||||||||||
 |
74AHCT1G126GW,165 |
|
IC BUS BUFF DVR TRI-ST 5TSSOP |
Data Sheet |
Negotiable |
|
||||||||||||
|
74AHCT1G126GW-G |
NXP Semiconductors |
Buffers & Line Drivers 3-STATE BUFFER |
Data Sheet |
Negotiable |
|
||||||||||||
|
74AHCT1G126GW-R |
NXP Semiconductors |
Buffers & Line Drivers BUS BUF/LINE 3-STATE |
Data Sheet |
Negotiable |
|
||||||||||||
