74HC594D

74HC594D, 8-bit shift register, SOP, 5V, 100 MHz, NXP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: 74HC594D

Brand:: NXP - NXP | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-28

From Other Seller

Part Number:74HC594D
US $2.50 - 3.00
Quantity:

piece

Product Summary

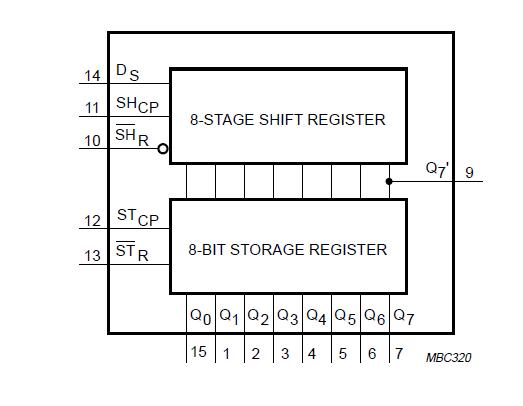

The 74HC594D is a high-speed, Si-gate CMOS device, and is pin compatible with low power Schottky TTL (LSTTL). The device is specified in compliance with JEDEC standard No. 7A. The 74HC594D contains an 8-bit, non-inverting, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Separate clocks and direct overriding clears are provided on both the shift and storage registers. A serial output (Q7’) is provided for cascading purposes. The applications of the 74HC594D include Serial-to parallel data conversion, Remote control holding register.

Parametrics

74HC594D absolute maximum ratings: (1)tPHL/tPLH propagation delay CL = 15 pF; VCC = 5 V, SHCP to Q7’: 13ns; STCP to Qn: 13ns; SHR to Qn: 11 ns; STR to Qn: 11 ns; (2)fmax maximum clock frequency SHCP, STCP: 100 MHz; (3)CI input capacitance: 3.5 pF; (4)CPD power dissipation capacitance per package: 84pF.

Features

74HC594D features: (1)Synchronous serial input and output; (2)8-bit parallel output; (3)Shift and storage register have independent direct clear and clocks; (4)100 MHz (typ.); (5)Output capability: parallel outputs: bus driver; serial outputs: standard; (6)ICC category: MSI.
