Product Summary

The 7M5012 is an ultra-small (5x5mm), GSM/EDGE Polar PAM for handset applications. This module has been optimized for excellent EDGE efficiency, Rx band noise performance, ACPR and EVM in an open loop polar modulation environment at EDGE class E2+ operation while maintaining high GSM/GPRS efficiency. The applications of the 7M5012 include GSM/EDGE/WEDGE Handsets, GSM/EDGE/WEDGE Wireless Cards.

Features

7M5012 features: (1)Ultra-small 5x5mm form factor; (2)GSM/EDGE Multi-Mode Capability; (3)- 90 dBm Typical Rx Noise; (4)- 38 dB Typical ACPR (200KHz); (5)- 66 dB Typical ACPR (400 KHz); (6)- 76 dB Typical ACPR (600 KHz); (7)1% Typical EVM rms; (8)> 50 dB Typical Dynamic Range; (9)GPRS Class 12; (10)Internally Matched Input and Output; (11)RoHS, MSL260C pending.

Diagrams

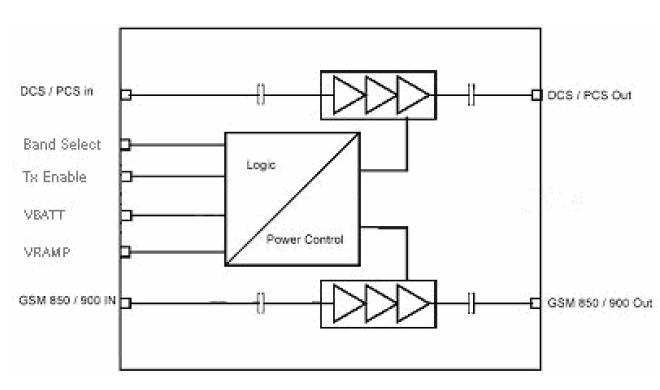

7M5012 block diagram
