Product Summary

The 90SQ045 (VS-90SQ045TR) is a Schottky rectifier with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplie, converter, freewheeling diodes, and reverse battery protection.



Parametrics

90SQ045 (VS-90SQ045TR) absolute maximum ratings: (1)maximum average forward current see fig. 5; (2)if(av): 9 A; (3)maximum peak one cycle a non-repetitive surge current see fig. 7 ifsm: 2150 A; (4)non-repetitive avalanche energy eas: 12 mj; (5)repetitive avalanche current iar: 1.8 A.

Features

90SQ045 (VS-90SQ045TR) features: (1)150 °C TJ operation; (2)Low forward voltage drop; (3)High frequency operation; (4)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (5)Guard ring for enhanced ruggedness and long term reliability; (6)Lead (Pb)-free plating; (7)Designed and qualified for industrial level.

Diagrams

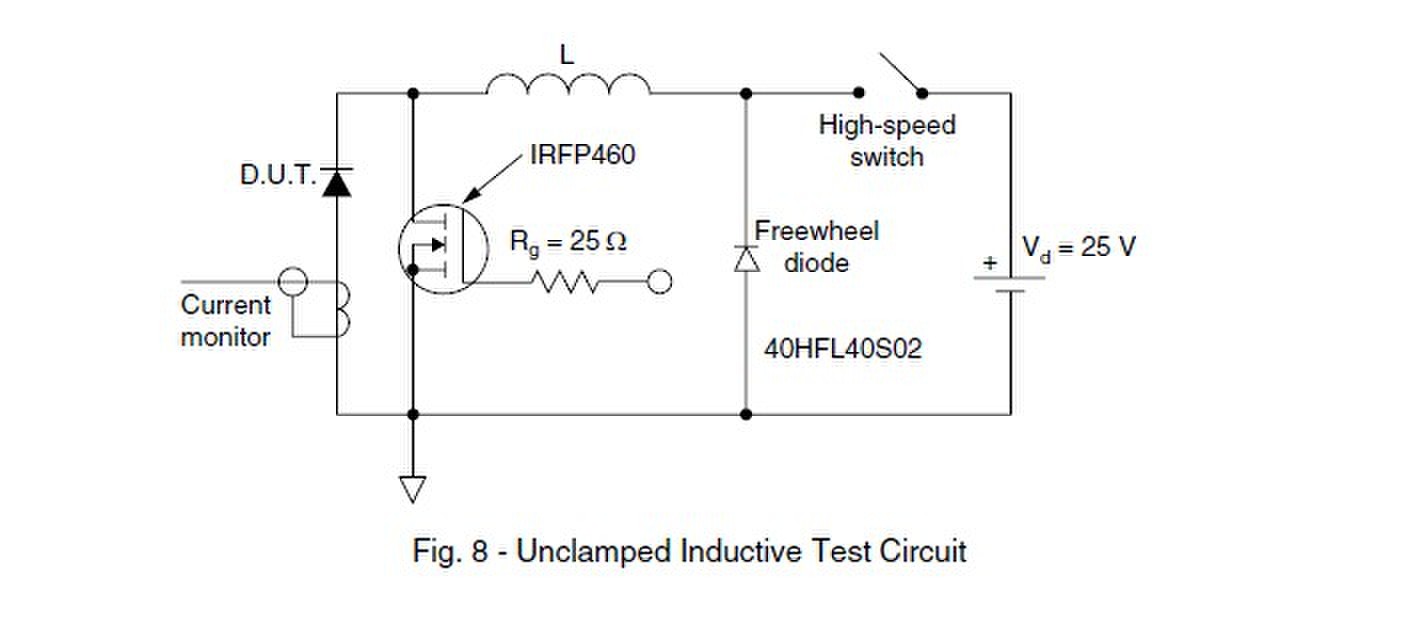

90SQ045 (VS-90SQ045TR) pin connection
