Product Summary
The ACPM-7332 is a Wide-band Code Division Multiple Access(WCDMA) Power Amplifer (PA). The ACPM-7332 is a fully matched 10-pin surface mount module developed for WCDMA handset applications. This power amplifer module is developed to cover 824-849MHz bandwidth. The ACPM-7332 meets the stringent WCDMA linearity requirements for output power of up to 28dBm. The ACPM-7332 is also developed to meet HSDPA specs.
Parametrics
ACPM-7332 absolute maximum ratings: (1)RF Input Power: 10.0 dBm; (2)DC Supply Voltage: 0 to 5.0 V; (3)Enable Voltage: 0 to 3.3 V; (4)Mode Control Voltage: 0 to 3.3 V; (5)Storage Temperature: -55 to 125℃.
Features
ACPM-7332 features: (1)Excellent Linearity ; (2)Low quiescent current; (3)High Efciency; (4)10-pin surface mounting package 4mmx4mmx1.1mm(typ); (5)Internal 50ohm matching networks for both RF input and output; (6)RoHS Compliant.

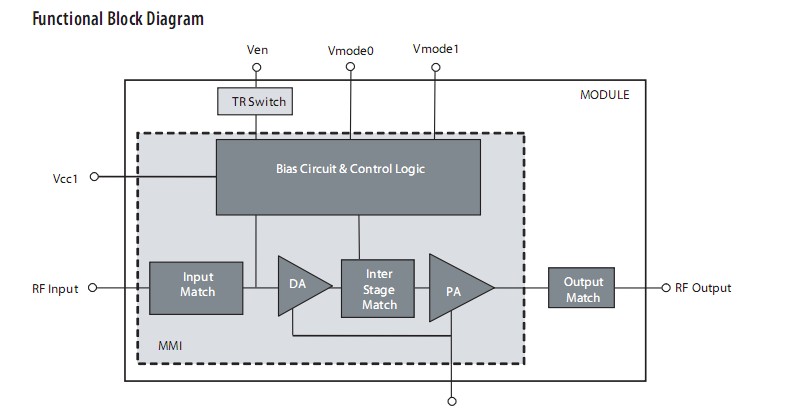

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ACPM-7332-BLK |
Avago Technologies |
RF Amplifier UMTS PA Module Band 2 |
Data Sheet |
Negotiable |
|
||||
|
ACPM-7332-TR1 |
Avago Technologies |
RF Amplifier UMTS PA Module Band 2 |
Data Sheet |
Negotiable |
|
||||
