Product Summary

The AME8818BEEV is a CMOS linear regulator. The AME8818BEEV operated from 2.5V to 5.5V input voltage and delivers up to 300mA outputurrent. The AME8818BEEV provides low quiescent current (70uA typ) low dropout voltage (230mV @ 300mA typ), and excellent PSRR, thus marking them ideal for Data-Communications and battery applications. Applications of the AME8818BEEV include: Data-Communication, Laptop, Palmtops, Notebook computers, Battery Power Equipment, Handheld Device and PCMCIA Cards.

Parametrics

AME8818BEEV absolute maximum ratings: (1) Input Voltage VIN: -0.3 to 6V; (2) EN Voltage VEN: -0.3 to 6V; (3) Output Current IOUT: PD/(VIN-VOUT) mA; (4) Output Voltage Vout: GND-0.3 to VIN +0.3V.

Features

AME8818BEEV features: (1) Input voltage range is from 2.5V to 5.5V; (2) Output voltage range is from 1.2V to 4.5V; (3) Guaranteed 300mA Drive Current; (4) Factory Pre-set output voltage; (5) Only 1uF Output Capacitor Required for Stability; (6) Provided OTP, current limit.

Diagrams

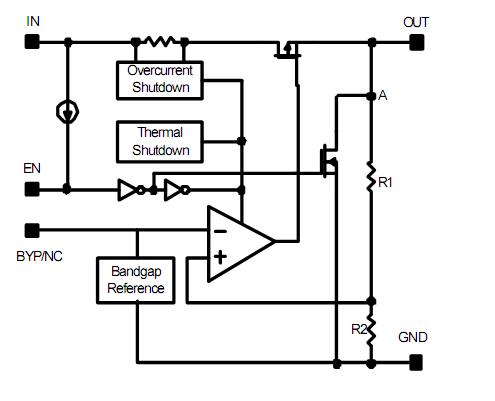

AME8818BEEV Block Diagram
