Product Summary
The AT29C020 is a 5-volt-only in-system Flash programmable and erasable read-only memory (PEROM) . 2 megabits of memory of the AT29C020 is organized as 262,144 bytes. Manu-factured with Atmel advanced nonvolatile CMOS technology, the AT29C020 offers access times to 70 ns with power dissipation of just 220 mW over the industrial tem-perature range.
Parametrics
AT29C020 absolute maximum ratings: (1) Temperature Under Bias: -55 to +125° C; (2) Storage Temperature: -65 to 150° C; (3) All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4) ll Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5) Voltage on OE with Respect to Ground: -0.6V to +13.5V.
Features
AT29C020 features: (1) Fast Read Access Time –70ns; (2) 5-volt Only Reprogramming; (3) Sector Program Operation; (4) Internal Program Control and Timer; (5) Hardware and Software Data Protection; (6) Two 8K Bytes Boot Blocks with Lockout; (7) Fast Sector Program Cycle Time – 10 ms; (8) ypical Endurance > 10,000 Cycles; (9) CMOS and TTL Compatible Inputs and Outputs; (10) Green (Pb/Halide-free) Packaging Option.

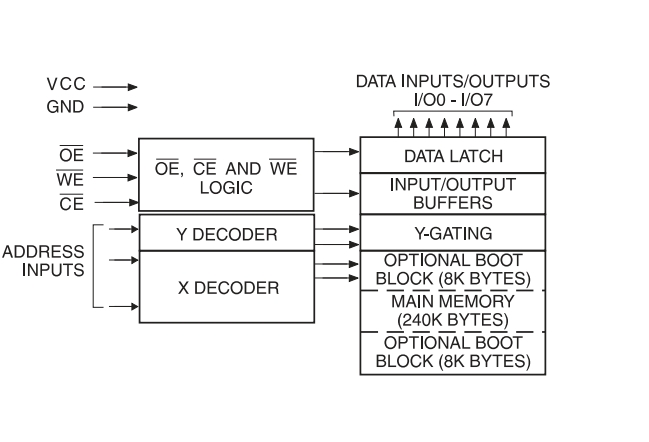

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT29C020 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
AT29C020-10JC |
|
IC FLASH 2MBIT 100NS 32PLCC |
Data Sheet |
Negotiable |
|
||||
|
AT29C020-12JI |
Atmel |
Flash 2M(256Kx8) 5V ONLY- 120NS IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT29C020-12JC |
Atmel |
Flash 2M(256Kx8) 5V ONLY- 120NS COM TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT29C020-10JI |
|
IC FLASH 2MBIT 100NS 32PLCC |
Data Sheet |
Negotiable |
|
||||
 |
AT29C020-10TC |
|
IC FLASH 2MBIT 100NS 32TSOP |
Data Sheet |
Negotiable |
|
||||
|
AT29C020-12TU |
Atmel |
Flash PARALLEL FLASH 2Mbit (256k x 8) - 120NS |
Data Sheet |
Negotiable |
|
||||
|
AT29C020-12JU |
Atmel |
Flash PARALLEL FLASH 2Mbit (256k x 8) - 120NS |
Data Sheet |
Negotiable |
|
||||
