Product Summary
The AT29C512-70JI (JU) is a 5-volt only in-system Flash programmable and erasable read only memory (PEROM). Its 512K of memory is organized as 65,536 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29C512-70JI (JU) offers access times to 70 ns with power dissipation of just 275 mW over the commercial temperature range. When the AT29C512-70JI is deselected, the CMOS standby current is less than 100 μA. The device endurance is such that any sector can typically be written to in excess of 10,000 times.
Parametrics
AT29C512-70JI (JU) absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.
Features
AT29C512-70JI (JU) features: (1)Fast Read Access Time - 70 ns; (2)5-volt Only Reprogramming; (3)Single Cycle Reprogram (Erase and Program); (4)512 Sectors (128 Bytes/Sector); (5)Internal Address and Data Latches for 128 Bytes; (6)Internal Program Control and Timer; (7)Hardware and Software Data Protection; (8)Fast Sector Program Cycle Time - 10 ms.

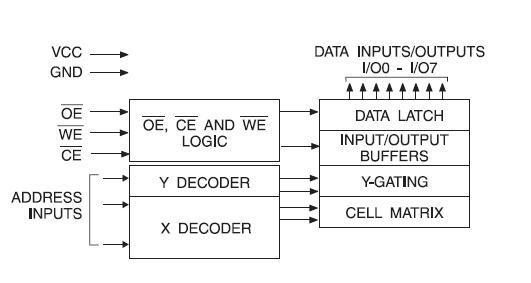

Diagrams
