AWL6153

AWL6153, Wireless LAN Power Amplifier Module, QFN, 0 to +5.5 V, 10 dBm, ANADIGICS

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: AWL6153

Brand:: ANADIGICS, Inc - ANAD | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-22

From Other Seller

Part Number:AWL6153
US $2.50 - 3.00
Quantity:

piece

Product Summary

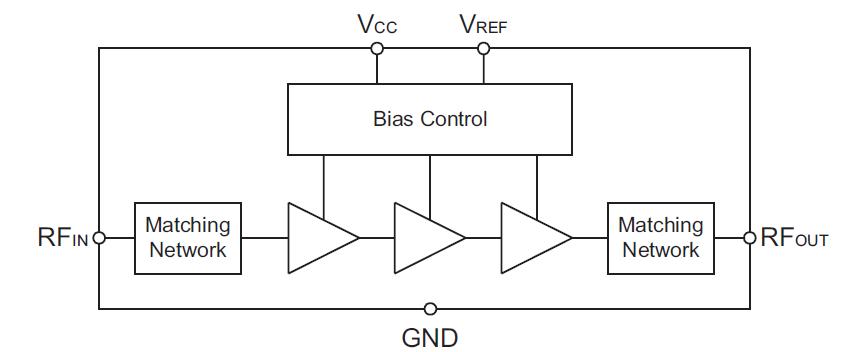

The AWL6153 is a WLAN Power Amplifier. The AWL6153 is an easy to use module that delivers high levels of linearity and efficiency for high data rate applications. Designed for the 2.4 GHz WLAN standards, it supports the 54 Mbps data rates specified in IEEE 802.11g. The applications of the AWL6153 include 802.11g/b WLAN Stations and Client Cards, 802.11g/b WLAN Access Points.

Parametrics

AWL6153 absolute maximum ratings: (1)Supply Voltage (VCC): 0 to +5.5 V; (2)Reference Voltage (VREF): 0 to +3.5 V; (3)RF Input Power (PIN): +10 dBm; (4)Storage Temperature: -40 to +150℃.

Features

AWL6153 features: (1)InGaP HBT Technology; (2)< 3.5% EVM at +25 dBm Output Power (+5 V Supply), with 802.11g Modulation at 54 Mbps Data Rate; (3)< 3% EVM at +21 dBm Output Power (+3.3 V Supply), with 802.11g Modulation at 54 Mbps Data Rate; (4)+3 V to +5 V Supply; (5)High Efficiency; (6)4 x 4 x 1.5 mm Surface Mount Module; (7)50Ω- Matched RF Ports for Reduced External Component Count; (8)Designated Pb-free Packaging.
