Product Summary

The BCM5466RA0KFBG is a quad-port gigabit ethernet copper transceiver.

Features

BCM5466RA0KFBG features: (1)Four fully integrated 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet transceivers; (2)RGMII, SGMII, and SerDes MAC interface options; (3)Copper or SerDes line interface options; (4)Fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards; (5)0.13-micron CMOS-low power and cost; (6)Low power, 750 mW per port; Advanced power management; (7)Trace matched output impedance; (8)Line-side loopback; (9)Low EMI emissions; (10)Cable plant diagnostics, Cable plant analyzer function detects cable plant impairments; Link quality indication LED; Automatic detection and correction of wiring pair swaps, pair skew, and pair polarity; Automatic MDI/MDIX crossover at all speeds; (11)Robust cable-sourced electrostatic discharge (CESD) tolerance; (12)Support for jumbo packets up to 10 kB; (13)IEEE 1149.1 (JTAG) boundary scan; (14)Package: 256-pin BGA.

Diagrams

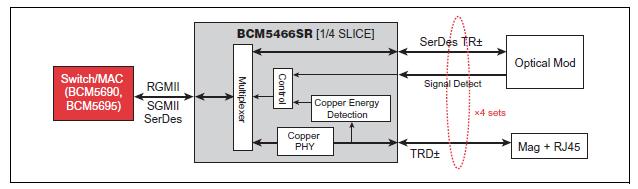

BCM5466RA0KFBG block diagram
