Product Summary
The BCM6512IPBG is a scalable DSL transceiver. The BCM6512IPBG is the first single-chip VDS solution to offer support for unshielded telephone distribution cable through the use of on-chip advanced digital filtering, preceding, and equalization techniques. The BCM6512IPBG offers DS system vendors an unmatched capability for the provision of high-speed data transmission services on twisted-pair copper wire supporting applications such as Internet access, LAN extensions, work-at-home, remote office, and switched digital video.
Features
BCM6512IPBG features: (1)Supports bit rates to 52 Mbps and baud rates to13Mbaud; (2)Less than 1W power consumption; (3)Integrated carrier and clock recovery loops for ease of use; (4)Programmable 4-256 QAM constellations; (5)Single 3.3V supply operation; (6)On-chip A/D and D/A converters; (7)On-chip clock generation; (8)Adjustable upstream and downstream center frequencies; (9)Extensive power management features; (10)JTAG test interface; (11)Small 100-pin PQFP form factors.

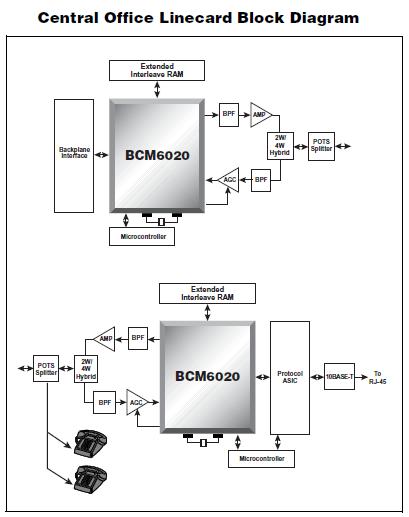

Diagrams
