Product Summary

The PS4041M is a Programmable Microcontroller (MCU). The PS4041M brings In-System-Programmability (ISP) to Flash memory and programmable logic. The result is a simple and flexible solution for embedded designs. The PS4041M combines many of the peripheral functions found in MCU based applications: 4 Mbit of Flash memory; A secondary Flash memory for boot or data; Over 3,000 gates of Flash programmable logic; 64 Kbit SRAM; Reconfigurable I/O ports; Programmable power management.

Parametrics

PS4041M absolute maximum ratings: (1)TSTG Storage Temperature PLDCC: -65 to 125 ℃; (2)Commercial: 0 to 70 ℃; (3)Operating Temperature Industrial: -40 to +85 ℃; (4)Voltage on any Pin With Respect to GND: -0.6 to +7 V; (5)VPP Device Programmer Supply Voltage With Respect to GND: -0.6 to +14 V; (6)VCC Supply Voltage With Respect to GND: -0.6 to +7 V; (7)ESD Protection >2000 V.

Features

PS4041M features: (1)5 V±10% Single Supply Voltage; (2)Up to 4 Mbit of Primary Flash Memory (8 uniform sectors); (3)256Kbit Secondary Flash Memory (4 uniform sectors); (4)Up to 64 Kbit SRAM; (5)Over 3,000 Gates of PLD: DPLD and CPLD; (6)52 Reconfigurable I/O ports; (7)Enhanced JTAG Serial Port; (8)Programmable power management.

Diagrams

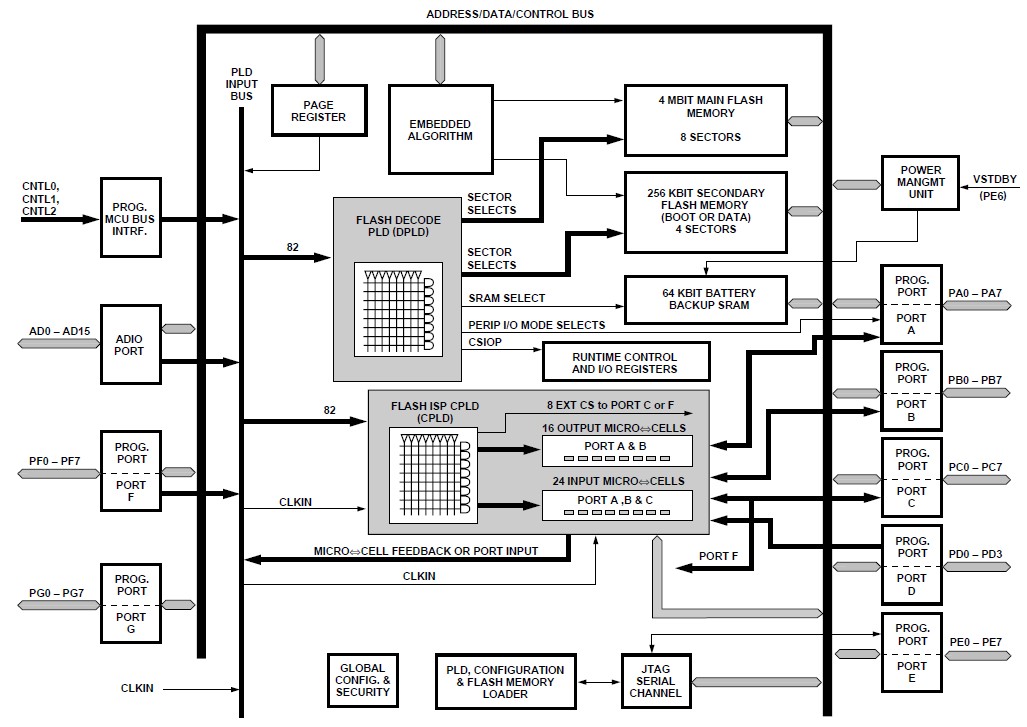

PS4041M block diagram
