CY23EP05SXC-1T

CY23EP05SXC-1T, Low Jitter, 5 Output Zero Delay Buffer, SOP, 2.5V or 3.3V, 10 to 220 MHz, Cypress Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.70 / Piece
601 ~ 1000 :	2.30 / Piece

PartNumber:: CY23EP05SXC-1T

Brand:: Cypress Semiconductor - Cypress | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-30

From Other Seller

Part Number:CY23EP05SXC-1T
US $2.30 - 3.00
Quantity:

piece

Product Summary

The CY23EP05SXC-1T is a 2.5V or 3.3V zero delay buffer designed to distribute low-jitter high-speed clocks and is available in a

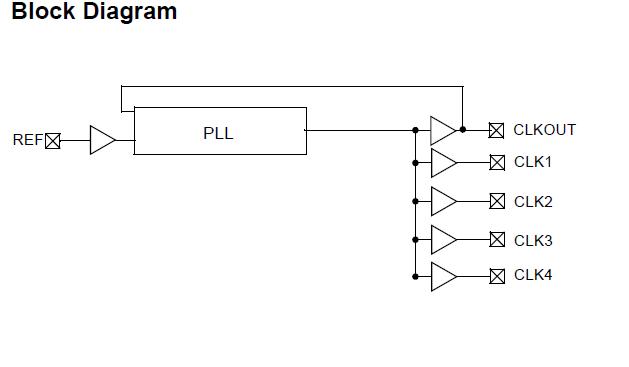

8-pin SOIC package. The CY23EP05SXC-1T accepts one reference input, and drives out five low-skew clocks. The -1H version operates up to 220 (200) MHz frequencies at 3.3V (2.5V), and has a higher drive strength than the -1 devices. All parts have on-chip PLLs which lock to an input clock on the REF pin. The PLL feedback is on-chip and is obtained from the CLKOUT pad.

Parametrics

CY23EP05SXC-1T absolute maximum ratings: (1)Supply Voltage to Ground Potential: -0.5V to 4.6V; (2)DC Input Voltage: VSS -0.5V to 4.6V; (3)Storage Temperature: -65℃ to 150℃; (4)Junction Temperature: 150℃; (5)Static Discharge Voltage (per MIL-STD-883, Method 3015: > 2000V.

Features

CY23EP05SXC-1T features: (1)10 MHz to 220 MHz maximum operating range; (2)Zero input-output propagation delay, adjustable by loading on CLKOUT pin; (3)Multiple low-skew outputs; (4)30 ps typical output-output skew; (5)One input drives five outputs; (6)22 ps typical cycle-to-cycle jitter; (7)13 ps typical period jitter; (8)Standard and High drive strength options; (9)Available in space-saving 150-mil SOIC package; (10)3.3V or 2.5V operation; (11)Industrial temperature available.
