DAC5687IPZPR

DAC5687IPZPR, 16-bit high-speed digital-to-analog converter, QFP, -0.5V to 4V, 30mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.86 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: DAC5687IPZPR

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-27

From Other Seller

Part Number:DAC5687IPZPR
US $2.50 - 3.00
Quantity:

piece

Product Summary

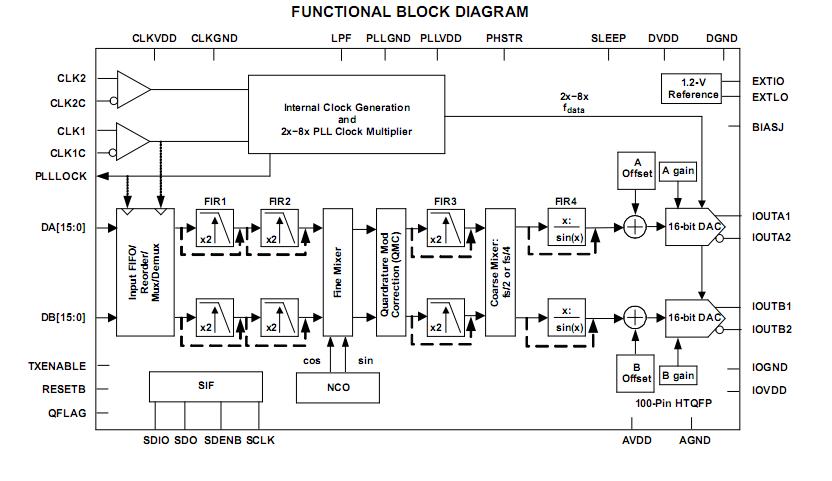

The DAC5687IPZPR is a dual-channel 16-bit high-speed digital-to-analog converter (DAC) with integrated 2x, 4x, and 8x interpolation filters, a complex numerically controlled oscillator (NCO), on-board clock multiplier, IQ compensation and on-chip voltage reference. The DAC5687IPZPR allows both complex or real output. Combining the frequency upconversion and complex output produces a Hilbert Transform pair that is output from the two DACs. The applications of the DAC5687IPZPR are Cellular Base Transceiver Station Transmit Channel, Cable Modem Termination System.

Parametrics

DAC5687IPZPR absolute maximum ratings: (1)Supply voltage range CLKVDD: -0.5V to 4V or -0.5V to 2.3V; (2)Voltage between AGND, DGND, CLKGND, PLLGND, and IOGND: -0.5V to 0.5V; (3)Peak input current (any input): 20 mA; (4)Peak total input current (all inputs): 30 mA; (5)Operating free-air temperature range: -40℃ to 85℃; (6)Storage temperature range: –65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: 260℃.

Features

DAC5687IPZPR features: (1)500 MSPS; (2)Selectable 2x-8x Interpolation; (3)On-Chip PLL/VCO Clock Multiplier; (4)Full IQ Compensation Including Offset, Gain, and Phase; (5)Flexible Input Options: FIFO With Latch on External or Internal Clock, Even/Odd Multiplexed Input, Single Port Demultiplexed Input; (6)Complex Mixer With 32-Bit NCO; (7)Fixed Frequency Mixer With Fs/4 and Fs/2; (8)1.8-V or 3.3-V I/O Voltage; (9)On-Chip 1.2-V Reference; (10)Differential Scalable Output: 2 mA to 20 mA; (11)Pin Compatible to DAC5686; (12)High Performance: 81-dBc ACLR WCDMA TM1 at 30.72 MHz, 72-dBc ACLR WCDMA TM1 at 153.6 MHz; (13)Package: 100-Pin HTQFP.
