Product Summary
The EM48AM1684VTB-7F is Synchronous Dynamic Random Access Memory (SDRAM) organized a 4Meg words x 4 banks by 16 bits. All inputs and outputs of the EM48AM1684VTB-7F are synchronized with the positive edge the clock. The EM48AM1684VTB-7F uses synchronized pipelined architecture to achieve high speed data transfer rates and is designed to operate at 3.3V low power memory system. The EM48AM1684VTB-7F also provides auto refresh with power saving / down mode.
Parametrics
EM48AM1684VTB-7F absolute maximum ratings: (1) Input, Output Voltage VIN, VOUT: -0.3 to +4.6V; (2) Power Supply Voltage VDD, VDDQ: -0.3 to +4.6V; (3) Operating Temperature Range, TOP Commercial: 0°C to +70°C, Extended: -25°C to +85°C; (4) Storage Temperature Range TSTG: -55°C to +150°C; (5) Power Dissipation PD: 1W; (6) Short Circuit Current IOS: 50mA.
Features
EM48AM1684VTB-7F features: (1) Fully Synchronous to Positive Clock Edge; (2) Single 3.3V ±0.3V Power Supply; (3) LVTTL Compatible with Multiplexed Address; (4) Programmable CAS Latency (C/L) - 2 or 3; (5) Data Mask (DQM) for Read / Write Masking; (6) Burst Read with Single-bit Write Operation; (7) All Inputs are Sampled at the Rising Edge of the System Clock; (8) Auto Refresh and Self Refresh.

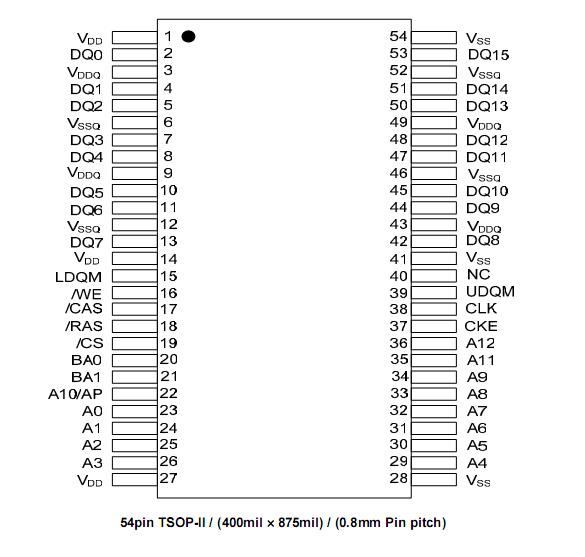

Diagrams
