Product Summary
The FDS7088N7 is an N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for “low side” synchronous rectifier operation, providing an extremely low RDS(ON) in a small package. The applications of the FDS7088N7 include Synchronous rectifier, DC/DC converter.
Parametrics
FDS7088N7 absolute maximum ratings: (1)VDSS, Drain-Source Voltage: 30 V; (2)VGSS, Gate-Source Voltage: ±20V; (3)ID, Drain Current – Continuous (Note 1a): 23 A; Pulsed: 60A; (4)PD, Power Dissipation for Single Operation (Note 1a): 3.0W; (Note 1b): 1.5W; (5)TJ, TSTG, Operating and Storage Junction Temperature Range: -55 to +150℃.
Features
FDS7088N7 features: (1)23 A, 30 V RDS(ON) = 3 mΩ@ VGS = 10 V; RDS(ON) = 4 mΩ@ VGS = 4.5 V; (2)High performance trench technology for extremely low RDS(ON); (3)High power and current handling capability; (4)Fast switching; (5)FLMP SO-8 package: Enhanced thermal performance in industry-standard package size.

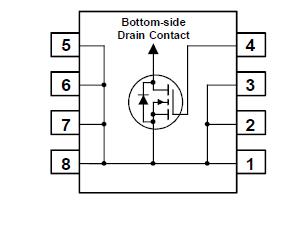

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FDS7088N7 |
Fairchild Semiconductor |
MOSFET 30V N-Ch PowerTrench |
Data Sheet |
Negotiable |
|
||||
