Product Summary

The H5PS2G83 is a 2Gb DDR2 SDRAM. The input and output of the H5PS2G83 is compatible with SSTL_18 interface. Storage Temperature of the H5PS2G83 is the case surface temperature on the /top side of the DRAM.

Parametrics

H5PS2G83 absolute maximum ratings: (1) Voltage on VDD pin relative to Vss VDD: -1.0V to 2.3V; (2) Voltage on VDDQ pin relative to Vss VDDQ: -0.5V to 2.3V; (3) Voltage on VDDL pin relative to Vss VDDL: -0.5V to 2.3V; (4) Voltage on any pin relative to Vss VIN, VOUT: -0.5V to 2.3V; (5) Storage Temperature TSTG: -55°C to 100°C; (6) Input leakage current; any input 0V VIN VDD; all other balls not under test = 0V) II: -2uA to 2uA; (7) Output leakage current; 0V VOUT VDDQ; DQ and ODT disabled Ioz: -5uA to 5uA.

Features

H5PS2G83 features: (1) All inputs and outputs are compatible with SSTL_18 interface; (2) VDD = 1.8 +/- 0.1V; (3) Fully differential clock inputs (CK, /CK) operation; (4) Double data rate interface; (5) Source synchronous-data transaction aligned to bidirectional data strobe (DQS, DQS) ; (6) JEDEC standard 60ball FBGA(x4/x8) ; (7) Read Data Strobe supported (x8 only) ; (8) Self-Refresh High Temperature Entry.

Diagrams

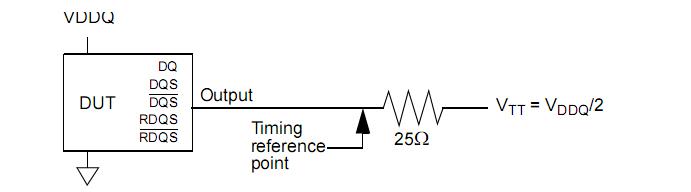

H5PS2G83 Circuit
