Product Summary
The HYH0SFG0AF1P-6SH0E is a color TFT LCD timing control board apply to drive PVI’s PW070XS1(16:9) Color TFT LCD Panel. The HYH0SFG0AF1P-6SH0E supports 18 bits parallel RGB input interface, with the build-in color space conversion circuit, DAC, and operation amplified, the driving board performs gamma correction and polarity inverted functions to converts the digital data to the proper interface of LCD Panel with 8 different zoom in/out display modes on different display resolutions. The applications of the HYH0SFG0AF1P-6SH0E include Security, Video Game, Door Phone, Video Phone, Portable TV, Instrument Display.
Parametrics
HYH0SFG0AF1P-6SH0E absolute maximum ratings: (1)Work temperature: -20℃ to +70℃; (2)Storage temperature: -30℃ to +80℃.
Features
HYH0SFG0AF1P-6SH0E features: (1)Fit PVI PW070XS1(16:9) series TFT LCD; (2)Ultra Compact; (3)Support 18 bits parallels data input; (4)Up/Down Display Reverse; (5)Left/Right Display Reverse.

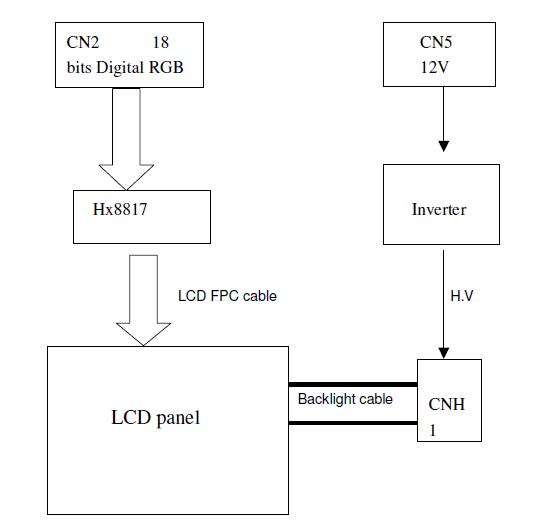

Diagrams
