Product Summary

The ISO7220CD is a dual-channel digital isolator.The ISO7220CD has a logic input and output buffer separated by TI silicon-dioxide (SiO2) isolation barrier, providing galvanic isolation of up to 4000V. Applications of the ISO7220CD include: Industrial Fieldbus, Computer Peripheral Interface, Servo Control Interface and Data Acquisition.

Parametrics

ISO7220CD absolute maximum ratings: (1) Supply voltage Vcc1, Vcc2: -0.5 to 6V; (2) Voltage at IN, OUT, VI: -0.5 to 6V; (3) Output current IO: ±15mA; (4) ESD Electrostatic discharge: Human Body Model, Electrostatic discharge JEDEC Standard 22, Test Method A114-C.01, ESD: ±4kV, Field-Induced-Charged Device Model, JEDEC Standard 22, Test Method C101 ESD: ±1kV, Machine Model, ANSI/ESDS5.2-1996, ESD: ±200V; (5) Maximum junction temperature TJ: 170°C.

Features

ISO7220CD features: (1) 1, 25, and 150-Mbps Signaling Rate Options; (2) Low Pulse-Width Distortion (PWD); 1 ns max; (3) Low Jitter Content; 1 ns Typ at 150 Mbps; (4) 50 kV/μs Typical Transient Immunity; (5) 4 kV ESD Protection; (6) Operates with 3.3-V or 5-V Supplies; (7) High Electromagnetic Immunity; (8) -40°C to 125°C Operating Range.

Diagrams

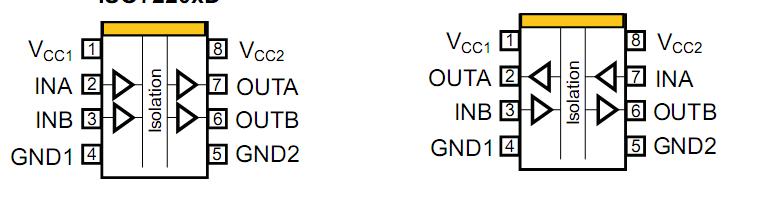

ISO7220CD Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ISO7220CD
ISO7220CD
Texas Instruments
Isolator Interface IC Dual CH 2/0 25Mbps Dig Iso
Data Sheet
0-1: $1.92
1-25: $1.75
25-100: $1.40
100-250: $1.22
ISO7220CDG4
ISO7220CDG4
Texas Instruments
Isolator Interface IC Dual Ch 2/0 25Mbps Dig Iso
Data Sheet
0-1: $1.95
1-25: $1.60
25-100: $1.40
100-250: $1.31
ISO7220CDR
ISO7220CDR
Texas Instruments
Isolator Interface IC Dual CH 2/0 25Mbps Dig Iso
Data Sheet
0-1: $1.81
1-25: $1.46
25-100: $1.33
100-250: $1.20
ISO7220CDRG4
ISO7220CDRG4
Texas Instruments
Isolator Interface IC Dual Ch 2/0 25Mbps Dig Iso
Data Sheet
0-1850: $0.85
1850-2000: $0.82
2000-2500: $0.82
2500-5000: $0.79
