Product Summary

The MT29F32G08CBACA is a double data rate DDR SDRAM. The MT29F32G08CBACA is a high-speed CMOS, dynamic random-access memory that operates at a frequency of 167 MHz (tCK=6ns) with a peak data transfer rate of 333Mb/s/p. DDR333 continues to use the JEDEC standard SSTL_2 interface and the 2n-prefetch architecture.

Parametrics

MT29F32G08CBACA absolute maximum ratings: (1)TA: 0 to 70°C; (2)VDDQ = +2.5V ±0.2V; (3)VDD = +2.5V ±0.2V.

Features

MT29F32G08CBACA features: (1)167 MHz Clock, 333 Mb/s/p data rate; (2)VDD = +2.5V ±0.2V, VDDQ = +2.5V ±0.2V; (3)Bidirectional data strobe (DQS)transmitted/ received with data, i.e., source-synchronous data capture (x16 has two - one per byte); (4)Internal, pipelined double-data-rate (DDR)architecture; two data accesses per clock cycle; (5)Differential clock inputs (CK and CK#); (6)Commands entered on each positive CK edge; (7)DQS edge-aligned with data for READs; centeraligned with data for WRITEs; (8)DLL to align DQ and DQS transitions with CK; (9)Four internal banks for concurrent operation; (10)Data mask (DM)for masking write data (x16 has two - one per byte).

Diagrams

MT29F32G08CBACA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

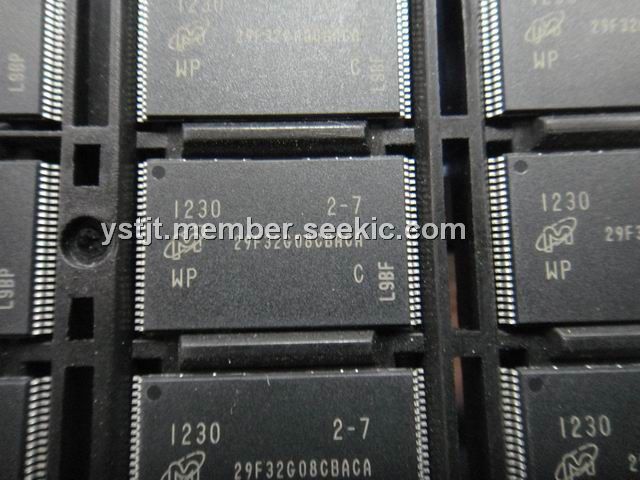

MT29F32G08CBACAWP:C
MT29F32G08CBACAWP:C


IC FLASH NAND 32GB 48TSOP

Data Sheet

0-1000: $3.30
MT29F32G08CBACAWP:C TR
MT29F32G08CBACAWP:C TR


IC FLASH NAND 32GB 48TSOP

Data Sheet

0-1: $5.07
1-10: $4.67
10-25: $4.57
25-50: $4.55
50-100: $4.09
100-250: $3.96
250-500: $3.77
500-1000: $3.64
MT29F32G08CBACAWP-IT:C
MT29F32G08CBACAWP-IT:C


IC FLASH NAND 32GB 48TSOP

Data Sheet

0-1000: $3.72
