Product Summary

The JM601 is a pretrimmed single chip monolithic multiplier/divider. The JM601 guarantees a maximum multiplying error of ±1.0% and a ±10 V output voltage without the need for any external trimming resistors or output op amp. Because the JM601 is internally trimmed, its simplicity of use provides design engineers with an attractive alternative to modular multipliers, and its monolithic construction provides significant advantages in size, reliability and economy. Further, the device can be used as a direct replacement for other IC multipliers that require external trim networks. The applications of the JM601 include Multiplication, Division, Squaring, Square Rooting, Algebraic Computation, Power Measurements, Instrumentation Applications, Available in Chip Form.

Parametrics

JM601 absolute maximum ratings: (1)Feedthrough, X (Y Nulled, X = 20 V pk-pk 50 Hz): 50 to 200mV; (2)Feedthrough, Y (X Nulled, Y = 20 V pk-pk 50 Hz): 30 to 150mV; (3)Feedthrough vs. Temperature: 2.0mV p-p/℃; (4)Feedthrough vs. Power Supply: ±0.25mV/%; (5)Small Signal BW (VOUT = 0.1 rms): 1MHz; (6)1% Amplitude Error: 75kHz; (7)Slew Rate (VOUT 20 pk-pk): 45 V/ms; (8)Settling Time (to 2%, DVOUT = 20 V): 1ms; (9)Wideband Noise f = 5 Hz to 10 kHz: 0.6mV (rms); (10)Wideband Noise f = 5 Hz to 5 MHz: 3.0mV (rms); (11)Output Voltage Swing: ±10 to ±13V; (12)Output Impedance (f ≤ 1 kHz): 1W; (13)Output Offset Voltage: ±40mV; (14)Output Offset Voltage vs. Temperature: 0.7mV/℃; (15)Output Offset Voltage vs. Supply: ±2.5mV/%.

Features

JM601 features: (1)Pretrimmed to 61.0% (AD532K); (2)No External Components Required; (3)Guaranteed 61.0% max 4-Quadrant Error (AD532K); (4)Diff Inputs for (X1-X2) (Y1-Y2)/10 V Transfer Function; (5)Monolithic Construction, Low Cost.

Diagrams

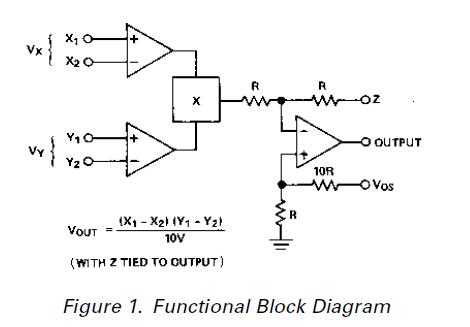

JM601 block diagram
