Product Summary

The K4T1G044QQ-HCE6 is a 1Gb DDR2 SDRAM is organized as a 32Mbit x 4 I/Os x 8banks, 16Mbit x 8 I/Os x 8banks or 8Mbit x 16 I/Os x 8 banks device. The K4T1G044QQ-HCE6 achieves high speed doubledata-rate transfer rates of up to 800Mb/sec/pin (DDR2-800) for general applications. The chip is designed to comply with the following key DDR2 SDRAM features such as posted CAS with additive latency, write latency = read latency - 1, Off-Chip Driver(OCD) impedance adjustment and On Die Termination.

Parametrics

K4T1G044QQ-HCE6 absolute maximum ratings: (1)VDD Voltage on VDD pin relative to VSS: -1.0 V to 2.3 V; (2)VDDQ Voltage on VDDQ pin relative to VSS: -0.5 V to 2.3 V; (3)VDDL Voltage on VDDL pin relative to VSS: -0.5 V to 2.3 V; (4)VIN, VOUT Voltage on any pin relative to VSS: -0.5 V to 2.3 V; (5)TSTG Storage Temperature: -55 to +100℃.

Features

K4T1G044QQ-HCE6 features: (1)JEDEC standard 1.8V ±0.1V Power Supply; (2)VDDQ = 1.8V ±0.1V; (3)333MHz fCK for 667Mb/sec/pin, 400MHz fCK for 800Mb/sec/pin; (4)8 Banks; (5)Posted CAS; (6)Programmable CAS Latency: 3, 4, 5, 6; (7)Programmable Additive Latency: 0, 1, 2, 3, 4, 5; (8)Write Latency(WL) = Read Latency(RL) -1; (9)Burst Length: 4 , 8(Interleave/nibble sequential); (10)Programmable Sequential / Interleave Burst Mode; (11)Bi-directional Differential Data-Strobe (Single-ended datastrobe; (12)is an optional feature); (13)Off-Chip Driver(OCD) Impedance Adjustment; (14)On Die Termination; (15)Special Function Support, PASR(Partial Array Self Refresh); 50ohm ODT; High Temperature Self-Refresh rate enable; (16)Average Refresh Period 7.8us at lower than TCASE 85℃, 3.9us at 85℃ < TCASE < 95℃; (17)All of Lead-free products are compliant for RoHS.

Diagrams

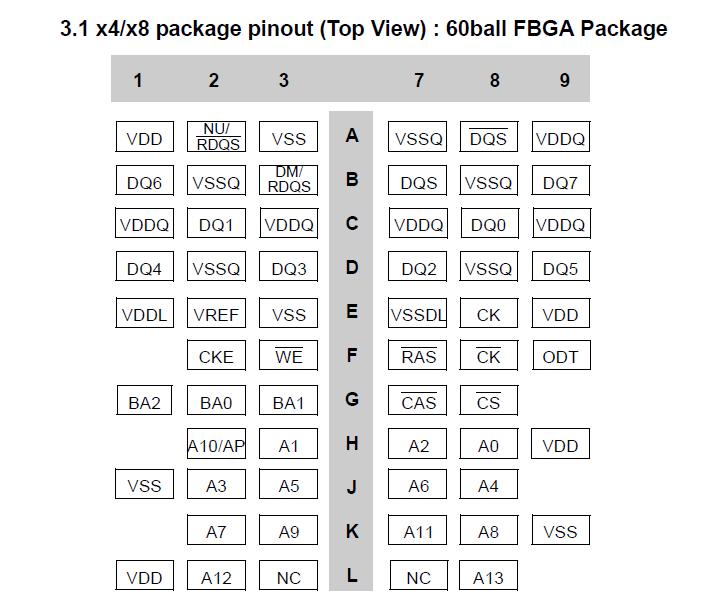

K4T1G044QQ-HCE6 block diagram
