Product Summary
The K9F2808U0B-VCB0 is a 16M x 8 Bit NAND Flash Memory. The K9F2808U0B-VCB0 is offered in 3.3V Vcc. Its NAND cell provides the most cost-effective solutIon for the solid state mass storage market. The K9F2808U0B-VCB0 is an optimum solution for large nonvolatile storage applications such as solid state file storage and other portable applications requiring non-volatility.
Parametrics
K9F2808U0B-VCB0 absolute maximum ratings: (1) Voltage on any pin relative to VSS, VIN/OUT: -0.6 to +4.6V, VCC: -0.6 to +4.6V, VCCQ: -0.6 to +4.6V; (2) Temperature Under Bias TBIAS: -40 to +125°C; (3) Storage Temperature Tstg: -65 to +150°C; (4) Short Circuit Current Ios: 5mA.
Features
K9F2808U0B-VCB0 features: (1) Voltage Supply: 2.7 ~ 3.6 V; (2) Automatic Program and Erase; (3) Page Read Operation; (4) Fast Write Cycle Time; (5) Reliable CMOS Floating-Gate Technology; (6) Command Register Operation; (7) Unique ID for Copyright Protection.

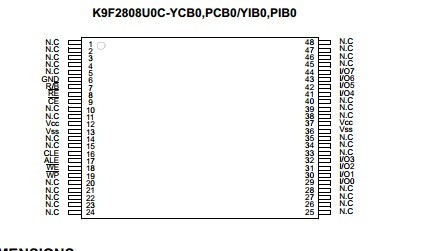

Diagrams
