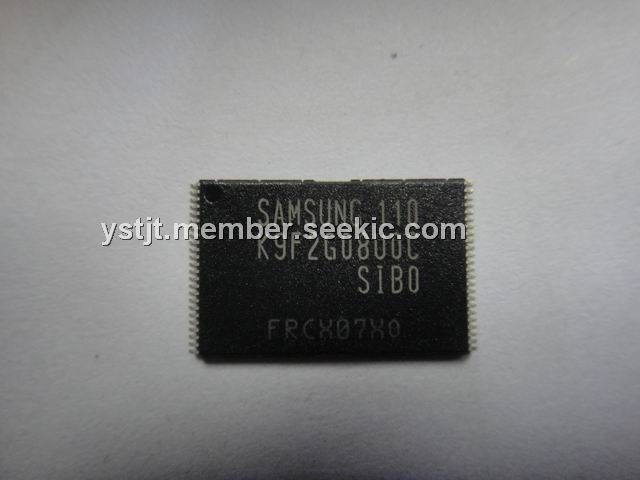

Product Summary

The K9F2G08U0C-SIBO is a 64M x 8 Bit NAND Flash Memory. The K9F2G08U0C-SIBO is offered in 3.3V Vcc. Its NAND cell provides the most cost-effective solutIon for the solid state mass storage market. A program operation can be performed in typical 200ms on the 528-byte page and an erase operation can be performed in typical 2ms on a 16K-byte block. Data in the page can be read out at 50ns cycle time per byte. The I/O pins serve as the ports for address and data input/output as well as command input. The on-chip write control automates all program and erase functions including pulse repetition, where required, and internal verification and margining of data.

Parametrics

K9F2G08U0C-SIBO absolute maximum ratings: (1)Voltage on any pin relative to VSS: VIN/OUT: -0.6V to +4.6V, VCC: -0.6V to +4.6V, VCCQ: -0.6V to +4.6V; (2)Temperature Under Bias: -10℃ to +125℃; (3)Storage Temperature: -65℃ to +150℃; (4)Short Circuit Current: 5 mA.

Features

K9F2G08U0C-SIBO features: (1)Voltage Supply:2.7V to 3.6V; (2)Organization: Memory Cell Array: (64M + 2048K)bit x 8 bit, Data Register:(512 + 16)bit x 8bit; (3)Automatic Program and Erase: Page Program : (512 + 16)Byte, Block Erase : (16K + 512)Byte; (4)Page Read Operation: Page Size: (512 + 16)Byte, Random Access: 15ms(Max.), Serial Page Access: 50ns(Min.); (5)Fast Write Cycle Time: Program time: 200ms(Typ.), Block Erase Time: 2ms(Typ.); (6)Command/Address/Data Multiplexed I/O Port Hardware Data Protection: Program/Erase Lockout During Power Transitions; (7)Reliable CMOS Floating-Gate Technology: Endurance: 100K Program/Erase Cycles, Data Retention: 10 Years; (8)Command Register Operation; (9)Intelligent Copy-Back ; (10)Unique ID for Copyright Protection.

Diagrams

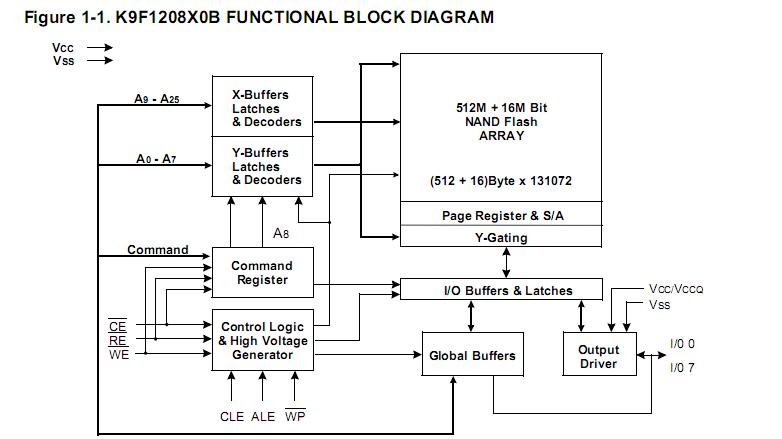

K9F2G08U0C-SIBO block diagram
