Product Summary

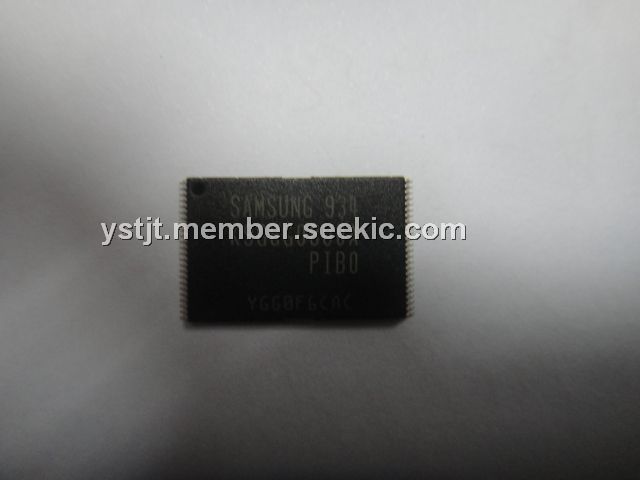

The K9G8G08UOA-PIBO is a 256m x 8 bit / 128m x 16 bit nand flash memory. Offered in 256Mx8bit or 128Mx16bit, the K9G8G08UOA-PIBO is 2G bit with spare 64M bit capacity. Its NAND cell provides the most costeffective solution for the solid state mass storage market. A program operation can be performed in typical 300ms on the 2112- byte(X8 device) or 1056-word(X16 device) page and an erase operation can be performed in typical 2ms on a 128K-byte(X8 device) or 64K-word(X16 device) block.

Parametrics

K9G8G08UOA-PIBO absolute maximum ratings: (1) Voltage on any pin relative to VSS VIN/OUT -0.6 to + 2.45, -0.6 to + 4.6 V; (2) Voltage on any pin relative to VSSVCC -0.2 to + 2.45, -0.6 to + 4.6 V; (3) Temperature Under Bias K9XXGXXXXM-XCB0 TBIAS: -10 to +125 °C; (4) Storage Temperature K9XXGXXXXM-XCB0 TSTG: -65 to +150 °C; (5) Short Circuit Current Ios: 5 mA.

Features

K9G8G08UOA-PIBO features: (1) Fast Write Cycle Time: Program time : 300ms(Typ.), Block Erase Time : 2ms(Typ.); (2) Command/Address/Data Multiplexed I/O Port; (3) Hardware Data Protection: Program/Erase Lockout During Power Transitions; (4) Reliable CMOS Floating-Gate Technology: Endurance : 100K Program/Erase Cycles, Data Retention : 10 Years; (5) Command Register Operation; (6) Cache Program Operation for High Performance Program; (7) Power-On Auto-Read Operation; (8) Intelligent Copy-Back Operation; (9) Unique ID for Copyright Protection.

Diagrams

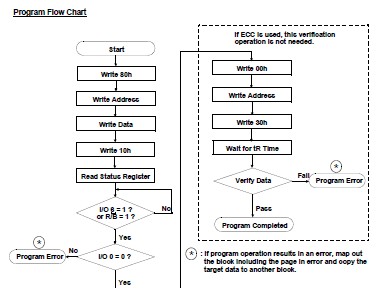

K9G8G08UOA-PIBO block diagram

K9G8G08U0M
K9G8G08U0M
