Product Summary

The K9K8G08U0D-SIB0000 is an 8G-bit NAND Flash Memory.Its NAND cell provides the most costeffective solution for the solid state application market. A program operation can be performed in typical 200us on the (2K+64)Byte page and an erase operation can be performed in typical 1.5ms on a (128K+4K)Byte block. Data in the data register can be read out at 25ns cycle time per Byte. The I/O pins serve as the ports for address and data input/output as well as command input. The K9K8G08U0D-SIB0000 is an optimum solution for large nonvolatile storage applications such as solid state file storage and other portable applications requiring non-volatility. An ultra high density solution having two 8Gb stacked with two chip selects is also available in standard TSOPI package.

Parametrics

K9K8G08U0D-SIB0000 absolute maximum ratings: (1)Voltage on any pin relative to VSS: -0.6 to + 4.6 V; (2)Temperature Under Bias: -10 to +125°C; (3)Storage Temperature: -65 to +150 °C; (4)Short Circuit Current: 5 mA.

Features

K9K8G08U0D-SIB0000 features: (1)Command Register Operation; (2)Intelligent Copy-Back; (3)Unique ID for Copyright Protection; (4)Endurance : 100K Program/Erase Cycles; (5)Data Retention : 10 Years; (6)Command/Address/Data Multiplexed I/O Port; (7)Hardware Data Protection - Program/Erase Lockout During Power Transitions; (8)Reliable CMOS Floating-Gate Technology; (9)Program time : 200us(Typ.); (10)Block Erase Time : 2ms(Typ.); (11)Page Size : (512 + 16)Byte; (12)Random Access : 15us(Max.).

Diagrams

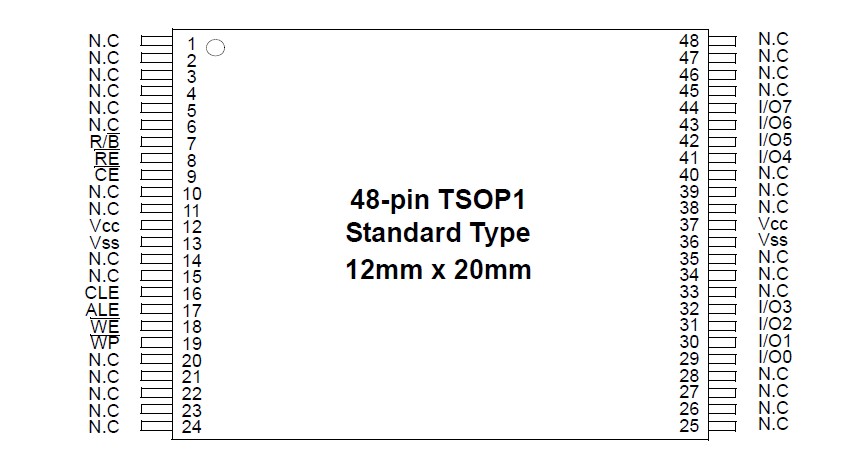

K9K8G08U0D-SIB0000 pin connection
