LP2951CD-3.3G

LP2951CD-3.3G, Micropower Voltage Regulator, SOP, -1.5 to +30V, 100 mA, ON SEMICONDUCTOR

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.50~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	5.00 / Piece
301 ~ 600 :	4.80 / Piece
601 ~ 1000 :	4.50 / Piece

PartNumber:: LP2951CD-3.3G

Brand:: ON SEMICONDUCTOR - ONS | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-22

From Other Seller

Part Number:LP2951CD-3.3G
US $4.50 - 5.00
Quantity:

piece

Product Summary

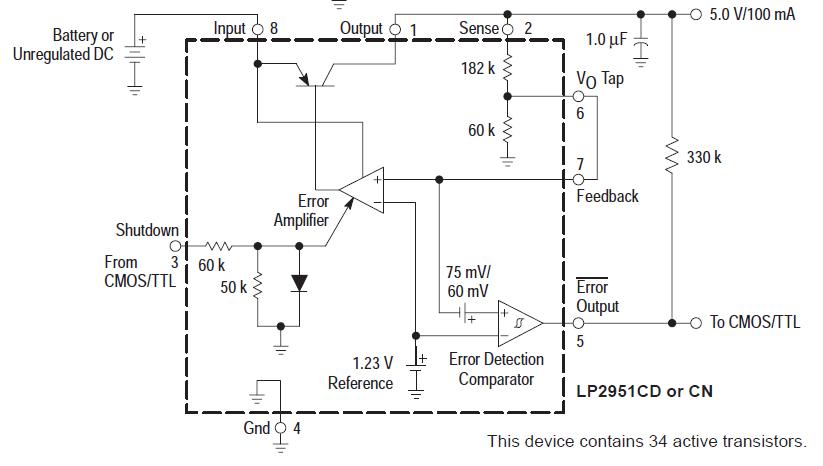

The LP2951CD-3.3G is a micropower voltage regulator that specifically designed to maintain proper regulation with an extremely low input-to-output voltage differential. The LP2951CD-3.3G features a very low quiescent bias current of 75 mA and are capable of supplying output currents in excess of 100 mA. Internal current and thermal limiting protection is provided. The LP2951 has three additional features. The first is the Error Output that can be used to signal external circuitry of an out of regulation condition, or as a microprocessor power–on reset.

Parametrics

LP2951CD-3.3G absolute maximum ratings: (1)Feedback Input Voltage, Vfb: -1.5 to +30Vdc; (2)Shutdown Input Voltage, Vsd: -0.3 to +30Vdc; (3)Error Comparator Output Voltage, Verr: -0.3 to +30Vdc; (4)Operating Junction Temperature, TJ: -40 to +125℃; (5)Storage Temperature Range, Tstg: -65 to +150℃.

Features

LP2951CD-3.3G features: (1)Low Quiescent Bias Current of 75 mA; (2)Low Input-to-Output Voltage Differential of 50 mV at 100 mA and; (3)380 mV at 100 mA; (4)5.0 V, 3.3 V or 3.0 V ±0.5% Allows Use as a Regulator or Reference; (5)Extremely Tight Line and Load Regulation; (6)Requires Only a 1.0 mF Output Capacitor for Stability; (7)Internal Current and Thermal Limiting.
