Product Summary

The MAX1673ESA is a Charge-Pump DC-DC Inverter. The MAX1673ESA provides a lowcost, compact means of generating a regulated negative output from a positive input at up to 125mA. It requires only three small capacitors, and only two resistors to set its output voltage. The input range is 2V to 5.5V. The regulated output can be set from 0V to -VIN in Skip regulation mode or -1.5V to -VIN in Linear (LIN) regulation mode. It is ideal for: (1)Hard Disk Drives Measurement Instruments; (2)Camcorders Modems; (3)Analog Signal-Processing Digital Cameras; (4)Applications.

Parametrics

MAX1673ESA absolute maximum ratings: (1)IN: -0.3V to +6V; (2)CAP+, FB, LIN/SKIP: -0.3V to (VIN + 0.3V); (3)SHDN: -0.3V to +6V; (4)OUT, CAP-: -6V to +0.3V; (5)Continuous Output Current: 135mA; (6)Output Short- Circuit Duration to GND (Note 1): 1sec; (7)Continuous Power Dissipation (TA = +70°C); (8)(derate 5.88mW/°C above +70°C): 450mW; (9)Operating Temperature Range: -40°C to +85°C; (10)Junction Temperature: +150°C; (11)Storage Temperature Range: -65°C to +160°C; (12)Lead Temperature (soldering, 10sec): +300°C.

Features

MAX1673ESA features: (1)Regulated Negative Output Voltage (up to -1 x VIN); (2)125mA Output Current; (3)35μA Quiescent Supply Current (Skip-mode regulation); (4)350kHz Fixed-Frequency, Low-Noise Output (Linear-mode regulation); (5)2V to 5.5V Input Range; (6)1μA Logic-Controlled Shutdown.

Diagrams

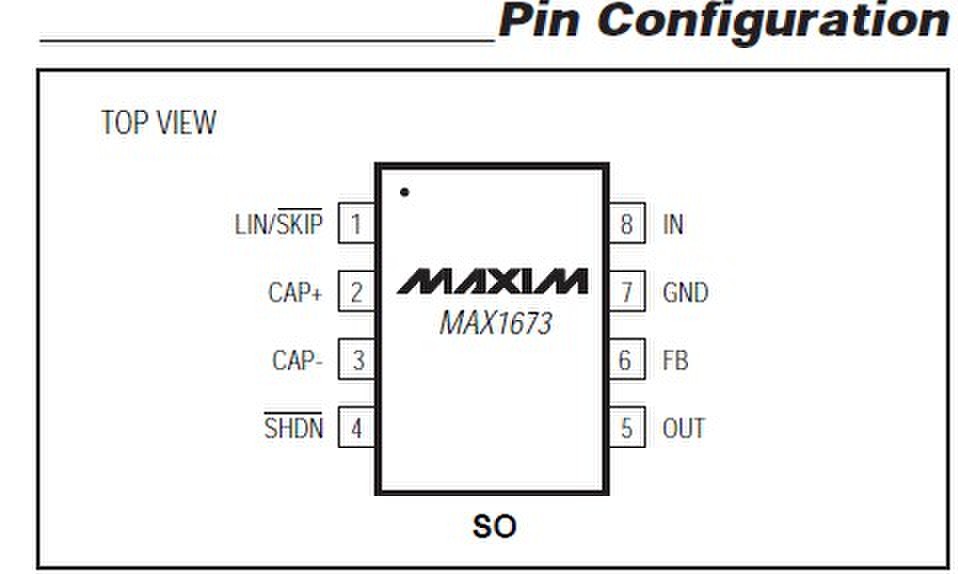

MAX1673ESA pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX1673ESA
MAX1673ESA
Maxim Integrated Products
Charge Pumps Regulated 125mA Charge Pump
Data Sheet
Negotiable
MAX1673ESA-T
MAX1673ESA-T
Maxim Integrated Products
Charge Pumps Regulated 125mA Charge Pump
Data Sheet
Negotiable
MAX1673ESA+
MAX1673ESA+
Maxim Integrated Products
Charge Pumps Regulated 125mA Charge Pump
Data Sheet
0-1: $3.07
1-25: $2.06
25-50: $1.49
50-100: $1.48
MAX1673ESA+T
MAX1673ESA+T
Maxim Integrated Products
Charge Pumps Regulated 125mA Charge Pump
Data Sheet
0-2085: $1.29
2085-2500: $1.29
