MC13783VK5

Product Summary

The MC13783VK5 is a highly integrated power management and audio component dedicated to handset and portable applications covering GSM, GPRS, EDGE, and UMTS standards. The MC13783VK5 implements high-performance audio functions suited to high-end applications such as smartphones and UMTS handsets. The MC13783VK5 provides the following key benefits: (1)Full power management and audio functionality in one module optimizes system size; (2)High level of integration reduces the power management and audio system bill of materials; (3)Versatile solution offers large possibilities of flexibility through simple programming (64 registers of 24-bit data); (4)Implemented DVS saves significant battery resources in every mode (compatibility with a large number of processors); (5)Dual channel voice ADC improves intelligibility.

Parametrics

MC13783VK5 absolute maximum ratings: (1)Charger input voltage: -0.3 to +20 V; (2)USB input voltage if common to charger: -0.3 to +20 V; (3)USB input voltage if separate from charger: -0.3 to +5.50 V; (4)Battery voltage: -0.3 to +4.65 V; (5)Coincell voltage: -0.3 to +4.65 V; (6)Ambient operating temperature range: -30 to +85 °C; (7)Operating junction temperature range: -30 to +125 °C; (8)Storage temperature range: -65 to +150 °C; (9)ESD protection human body model: 2.0 kV.

Features

MC13783VK5 features: (1)Battery charger interface for wall charging and USB charging; (2)10 bit ADC for battery monitoring and other readout functions; (3)Buck switchers for direct supply of the processor cores; (4)Boost switcher for backlight and USB on the go supply; (5)Regulators with internal and external pass devices; (6)Transmit amplifiers for two handset microphones and a headset microphone; (7)Receive amplifiers for earpiece, loudspeaker, headset and line out; (8)13 bit Voice CODEC with dual ADC channel and both narrow and wide band sampling; (9)13 bit Stereo recording from an analog input source such as FM radio; (10)16 bit Stereo DAC supporting multiple sample rates; (11)Dual SSI audio bus with network mode for connection to multiple devices; (12)Power control logic with processor interface and event detection; (13)Real time clock and crystal oscillator circuitry; (14)Dual SPI control bus with arbitration mechanism; (15)Multiple backlight drivers and LED control including funlight support; (16)USB FS/LS transceiver with OTG and CEA-936-A Carkit support; (17)Touchscreen interface.

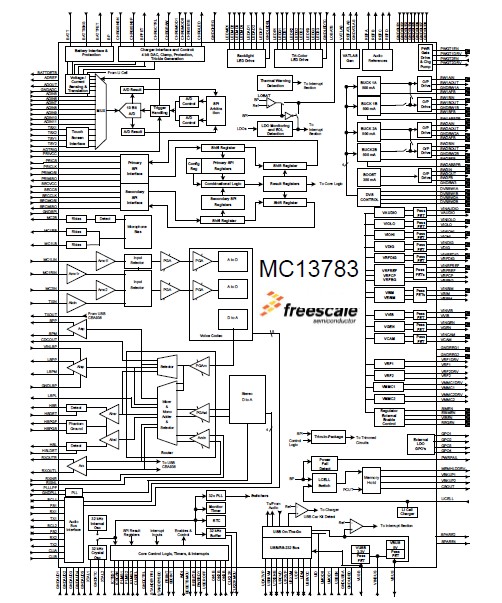

Diagrams
