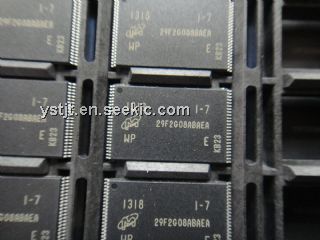

Product Summary

The MT29F2G08ABAEAH4-IT:E is a NAND flash memory. The MT29F2G08AADWP can be easily implemented in Actel IGLOO or ProASIC low power FPGAs that contain 5600 tiles, such as AGL250 or A3P250 devices. However, this design was verified with the Actel M1AGL600V2 484FBGA IGLOO device and interfaces with an Actel Core8051 and a Micron MT29F2G08ABAEAH4-IT:E NAND flash device. The NAND flash interface is universal and supports similar devices. The MT29F2G08ABAEAH4-IT:E has a multiplexed bus for data, address, and instructions and support page access rather than the random access used by NOR flash. The MT29F2G08ABAEAH4-IT:E NAND flash device contains 2,048 blocks; each block is subdivided into 64 programmable pages; each page consists of 2,112 bytes; and each page is divided into a 2,048-byte data storage region with a separate 64-byte area, typically used for error management functions.

Parametrics

MT29F2G08ABAEAH4-IT:E absolute maximam ratings: (1)MT29FxGxxxAx VIN Supply voltage on any pin relative to Vss: -0.6 +4.6 V; (2)MT29FxGxxxAx VCC Supply voltage on any pin relative to Vss: -0.6 +4.6 V; (3)Storage temperature TSTG: -65 +150℃; (4)Short circuit output current, I/Os: 5 mA.

Features

MT29F2G08ABAEAH4-IT:E features: (1)Density: 2Gb; (2)Part Status: Production; (3)ROHS: Yes; (4)Width: x8; (5)Voltage: 3.3V; (6)Package: TSOP; (7)Pin Count: 48 pin; (8)Bits/Cell: SLC; (9)I/O: Common; (10)Op Temp: -40C to +85℃.

Diagrams

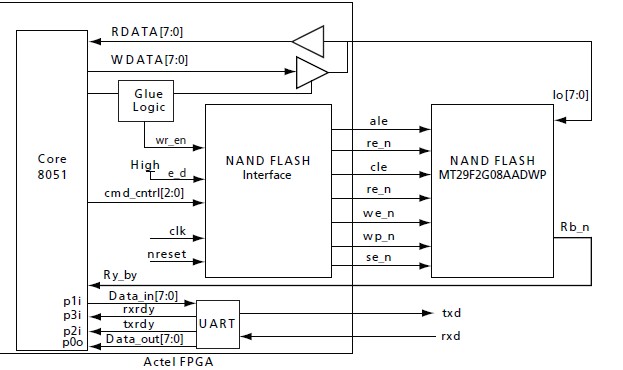

MT29F2G08ABAEAH4-IT:E block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

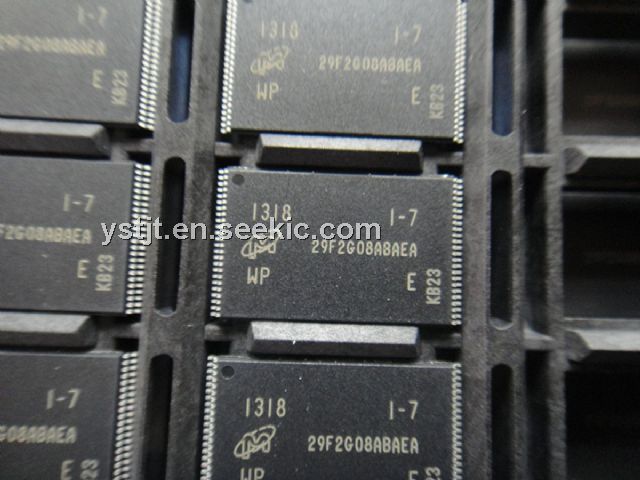

MT29F2G08ABAEAH4-IT:E
MT29F2G08ABAEAH4-IT:E


IC FLASH 2G 3.3V SLC 63VFBGA

Data Sheet

0-1000: $2.51
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MT29C1G12MAACVAML-5 IT
MT29C1G12MAACVAML-5 IT


IC FLASH NAND 1GB 153VFBGA

Data Sheet

0-1000: $2.56
MT29C1G12MAACYAKD-5 IT
MT29C1G12MAACYAKD-5 IT


IC FLASH NAND 1GB 137TFBGA

Data Sheet

0-1000: $2.56
MT29C1G12MAACYAMD-5 IT
MT29C1G12MAACYAMD-5 IT


IC FLASH NAND 1.5GB 130VFBGA

Data Sheet

0-1000: $2.56
MT29C1G12MAACYAML-5 IT
MT29C1G12MAACYAML-5 IT


IC FLASH NAND 1.5GB 153VFBGA

Data Sheet

0-1000: $2.56
MT29C1G12MAADAEAKC-6 IT
MT29C1G12MAADAEAKC-6 IT


IC FLASH NAND 1.5GB 107VFBGA

Data Sheet

0-1000: $2.56
MT29C1G12MAADAFAKD-6 IT
MT29C1G12MAADAFAKD-6 IT


IC FLASH NAND 1.5GB 137TFBGA

Data Sheet

0-1000: $2.56
