Product Summary

The MT41J64M16JT-15E is a DDR3 SDRAM uses a double data rate architecture to achieve high-speed operation. The double data rate architecture is an 8n-prefetch architecture with an interface designed to transfer two data words per clock cycle at the I/O pins. A single read or write operation for the MT41J64M16JT-15E effectively consists of a single 8n-bit-wide, four-clockcycle data transfer at the internal DRAM core and eight corresponding n-bit-wide, one half-clock-cycle data transfers at the I/O pins.

Parametrics

MT41J64M16JT-15E absolute maximum ratings: (1)VDD VDD supply voltage relative to VSS: -0.4 to 1.975V; (2)VDDQ VDD supply voltage relative to VSSQ -0.4 to 1.975V; (3)VIN, VOUT Voltage on any pin relative to VSS -0.4 to 1.975V; (4)TC Operating case temperature - Commercial 0 to 95℃; (5)Operating case temperature - Industrial: -40 to 95℃; (6)Operating case temperature - Automotive: -40 to 105℃; (7)TSTG Storage temperature: -55 to 150℃.

Features

MT41J64M16JT-15E features: (1)VDD = VDDQ = 1.5V -0.075V; (2)1.5V center-terminated push/pull I/O; (3)Differential bidirectional data strobe; (4)8n-bit prefetch architecture; (5)Differential clock inputs (CK, CK#); (6)8 internal banks; (7)Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals; (8)Programmable CAS READ latency (CL); (9)POSTED CAS ADDITIVE latency (AL); (10)Programmable CAS WRITE latency (CWL) based on tCK; (11)Fixed burst length (BL) of 8 and burst chop (BC) of 4 (via the mode register set [MRS]); (12)Selectable BC4 or BL8 on-the-fly (OTF); (13)Self refresh mode; (14)TC of 0 to 95℃; (15)64ms, 8192 cycle refresh at 0 to 85℃; (16)32ms, 8192 cycle refresh at 85 to 95℃; (17)Self refresh temperature (SRT); (18)Automatic self refresh (ASR); (19)Write leveling; (20)Multipurpose register; (21)Output driver calibration.

Diagrams

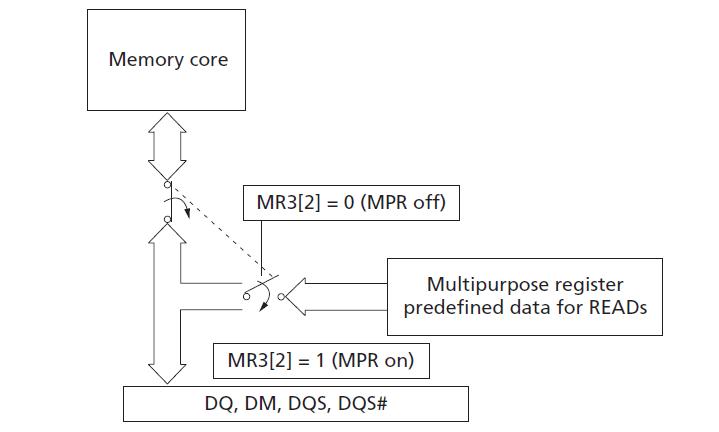

MT41J64M16JT-15E block diagram
