Product Summary
The MX25L5121E0C-20G is a cmos 524,288 bit serial flash memory, which is configured as 65,536 x 8 internally. The MX25L5121E0C-20G features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. the three bus signals are a clock input (sclk), a serial data input (si), and a serial data output (so). spi access to the device is enabled by cs# input.
Parametrics
MX25L5121E0C-20G absolute maximum ratings: (1)Ambient Operating Temperatur Industrial grade: -40°C to 85°C; (2)Storage Temperature: -55°C to 125°C; (3)Applied Input Voltage: -0.5V to 4.6V; (4)Applied Output Voltage: -0.5V to 4.6V; (5)VCC to Ground Potential: -0.5V to 4.6V
Features
MX25L5121E0C-20G features: (1)serial peripheral interface (spi)compatible -- mode 0 and mode 3; (2)524,288 x 1 bit structure; (3)16 equal sectors with 4k byte each: any sector can be erased individually; (4)single power supply operation: 2.7 to 3.6 volt for read, erase, and program operations; (5)latch-up protected to 100ma from -1v to vcc +1v.

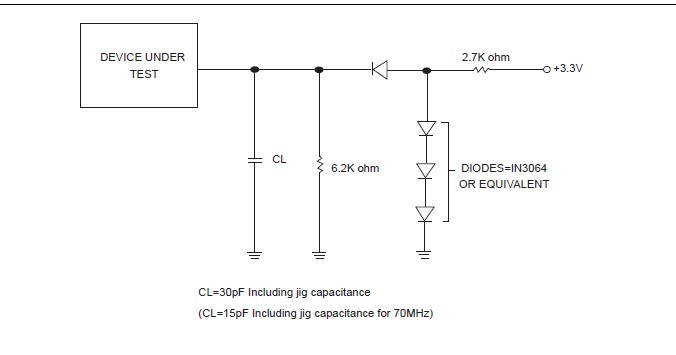

Diagrams
